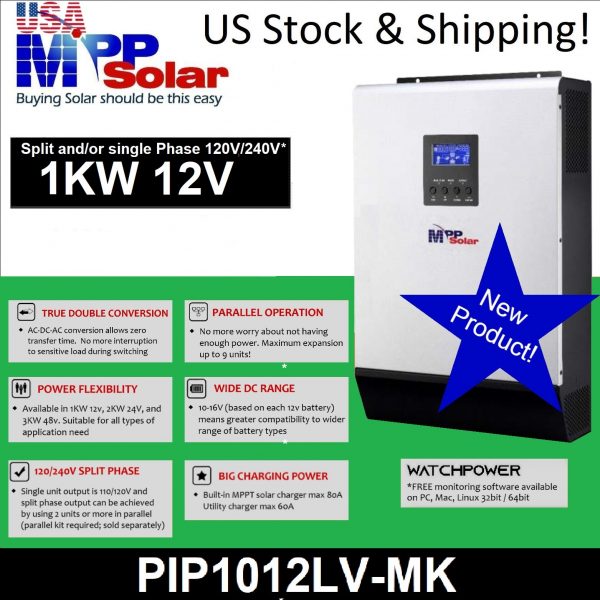

PIP1012LV-MK – 12V 1kW 120V Inverter , 1kW Solar Charger 80A , Parallelable and split phase up to 9 units, Zero Transfer Time

$632.00

SKU: 1012LV-MK Category:

Description



What our 12V DC die hard customers have been asking for !

Here is a video of myself  (in a rush as usual) installing one into a Motorhome.

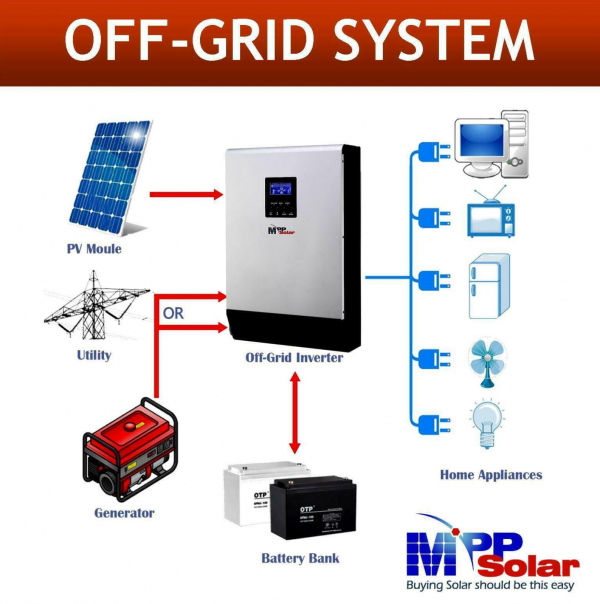

Many times you want to stick with a 12V battery system in your RV / Motorhome / Cabin / Van / Truck etc, but you need a little more than 1000W in the future, or just split phase 120V/240V for that air conditioner etc.

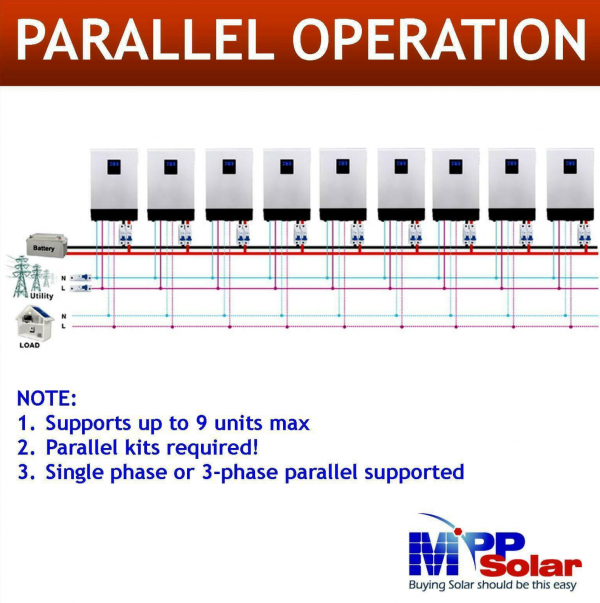

MPP Solar now has a 1,2..3,4..9kW Single / split phase  12V Battery system.  (available in single units too, but you can add up to 9 units – wow 9KW from a 12V battery system is 9000/12 = 750A, or 80A per inverter)
You need 2 or more to make split phase 240V or just stick with single phase 1 to 9 kW

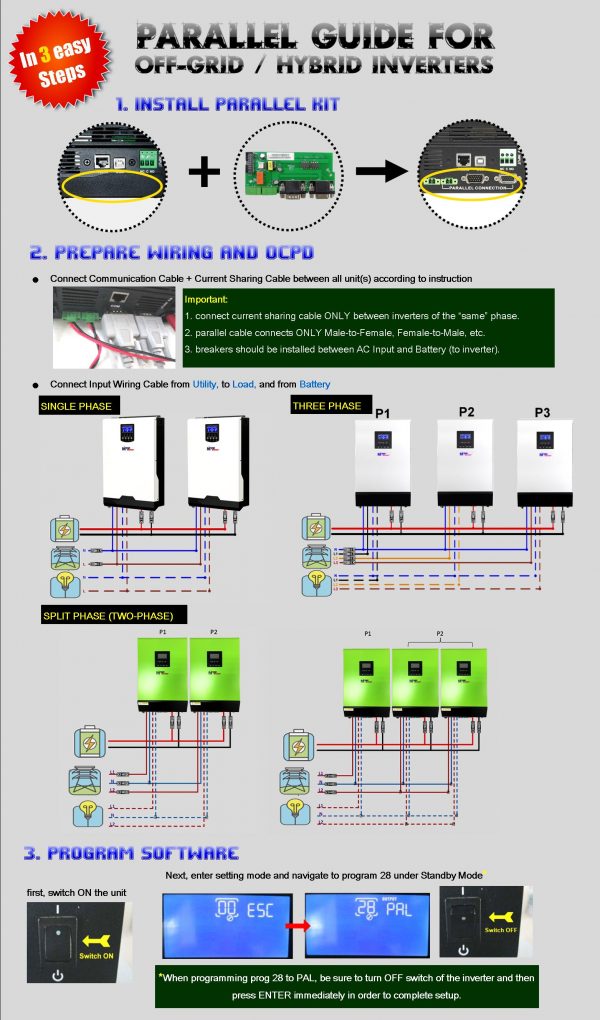

Parellel kits required for each inverter connected together, sold separately on this site
This unit differs from the PIP-1012LV-MS  (not parallel-able)
Each inverter has a 1KW Solar Input Capacity
Solar Specs:
80A MPPT, Solar voltage 15 to 115V DC (working volts) – so 80 x 12 = 1KW of solar panels per inverter.
Generator / Grid Input Specs:
Built in 60A @ 12V charger  (1720W charger), can work off your standard generator or grid power
Solar calculation:
example, if you have 2 x 345W panels Voc (open circuit) is 47V, Vmp = 39V, then you could either connect more in parallel to get to your  Wattage up, or you could put two in series (to get to 94Voc  – 78Vmp)
Each 1012LV-MK  1kW of Solar , using the 345W example,  (3 x 345W panels per input) or 3 x 345W panels all in parallel  (connecting all three in series would exceed the 115V limit)
Has a  2 wire generator starter relay,
NOTE:  if they are configured in Split phase mode, they will need split phase  120V – 0 – 120V (240V) input to activate Util/Generator charging,  If configured as single phase 120V, then a single 120V source will work to charge from AC)

Additional information

Weight 30 lbs
Dimensions 23 × 16 × 9 in
