Description
Link to the manual copy and paste into your browser: PIP8048Max-Manual
Youtube vid of running truly batteryless: https://youtu.be/KEJKoYqbYQw (This is for the LV6548, but the PIP8048Max is the 240V version)
Education links to diagrams and calculations: https://watts247.com/education/
Please don’t cry to us when you decided to buy from an international/fake/copy seller – no support, no local warranty, no local phone number. (It happens all the time)
There are lots of fake Chinese copies out there , perhaps saving you 100 to 200 bucks, I say – go for it! Once bitten, twice shy.

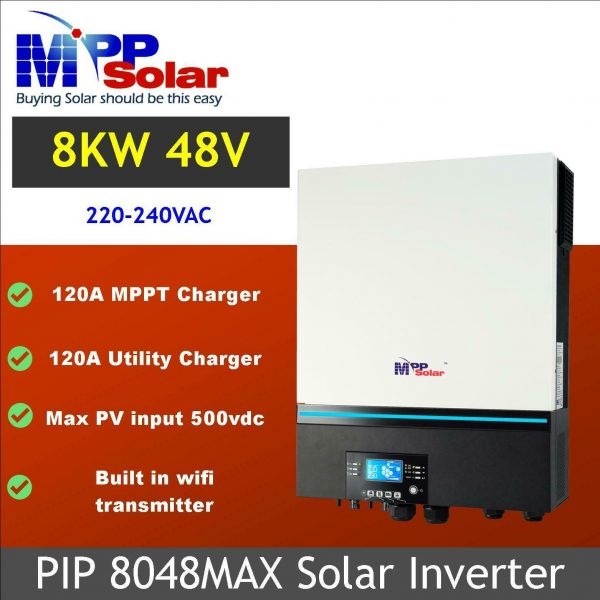

The LV8048-Max is a popular model for 240V only appliances or for use with a center tap transformer
This unit is unique with the following attributes:
- USA Warranty 2 years for our website customers
- Telephonic support (In English) out of Utah
- We are the defacto MPP Solar distributors
- 8kw 240V pure sine wave output (33A)
- Can offset your utility power by directly supplying loads from your solar panels (“net zero” effect) when running with or without batteries
- 120A Mppt at max 500Voc – 2 x ( 4kW MPPT Charge Controllers)
- Built In Utility Charger
- Built in Genset dry contact start/stop relay
- Lithium / LiFePO4 , AGM, Flooded, Silica Salt battery compatible, and more (custom parameters can be set according to any battery between 40 and 62V
- Can be timed to only charge the battery via Utility power during certain hours (load shifting to charge on off peak rates, and using the battery during peak tariffs) Very popular for our California Customers
- High PV Input 500V (Voc) Open circuit)
- Batteryless operation (singe unit mode only) (When using two or more, battery IS REQUIRED, due to the erratic nature of solar energy)

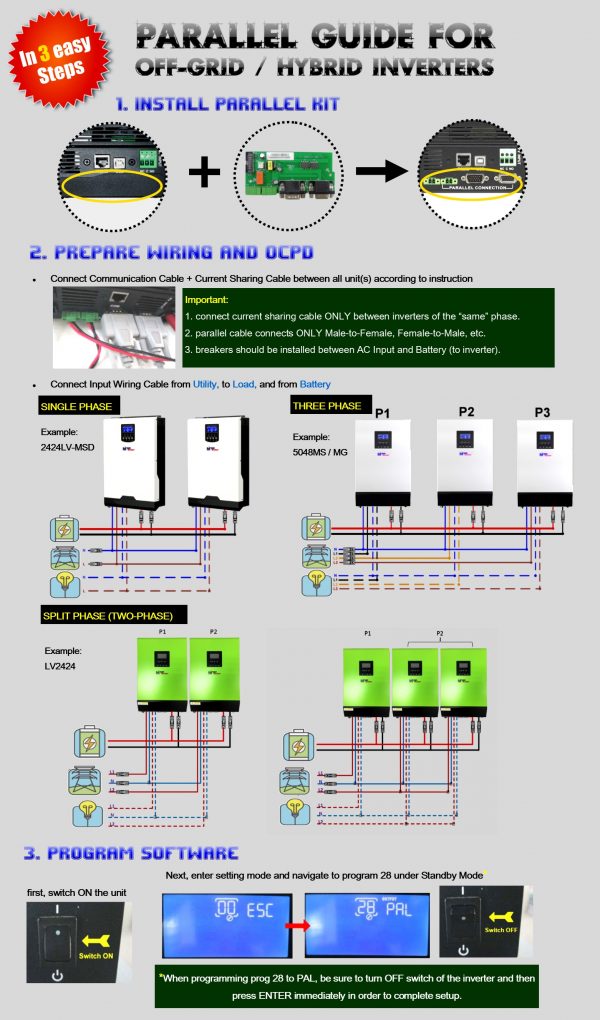

- parallelable up to 6 units
- built in Wifi Transmitter
- Built in parallel kits
- Dual PV inputs
- BMS Support (Pylontech, Weco, Soltaro) – Separate BMS cable required
- Timer for output and Timer for charging
- Built In LED RGB panel display to show operational mode
- Supports Equalization Charge up to 62V
Links:

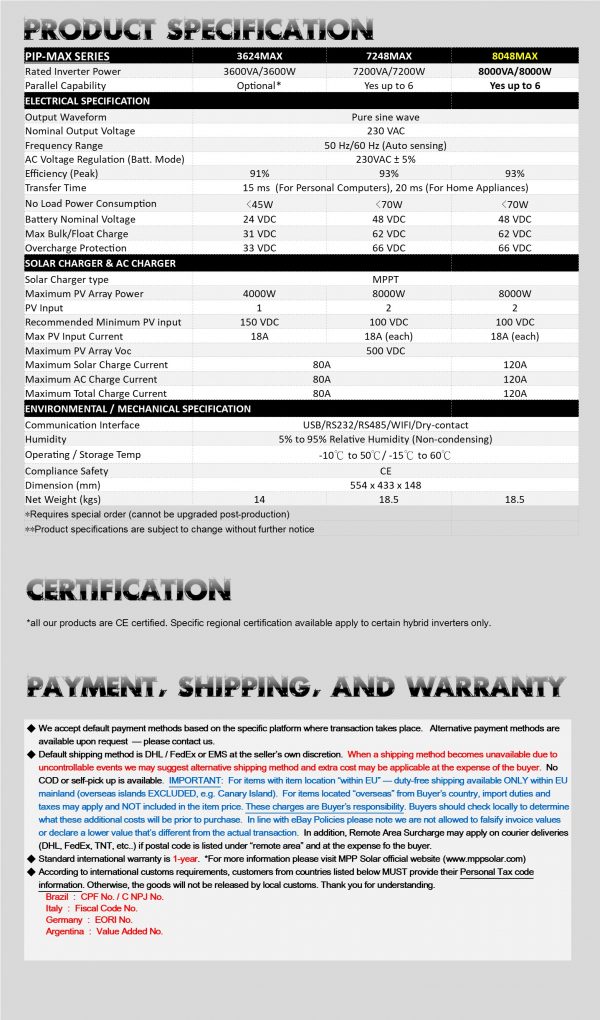

- Specification & Comparison Sheet
- PIP8048MAX User Manual
- Batteryless Operation on LV6548 (PIP8048MAX is the 240V Version)
