Disclaimer: The information below is intended for informational purposes only! Only qualified individuals should wire and install electrical equipment.
Table of Contents

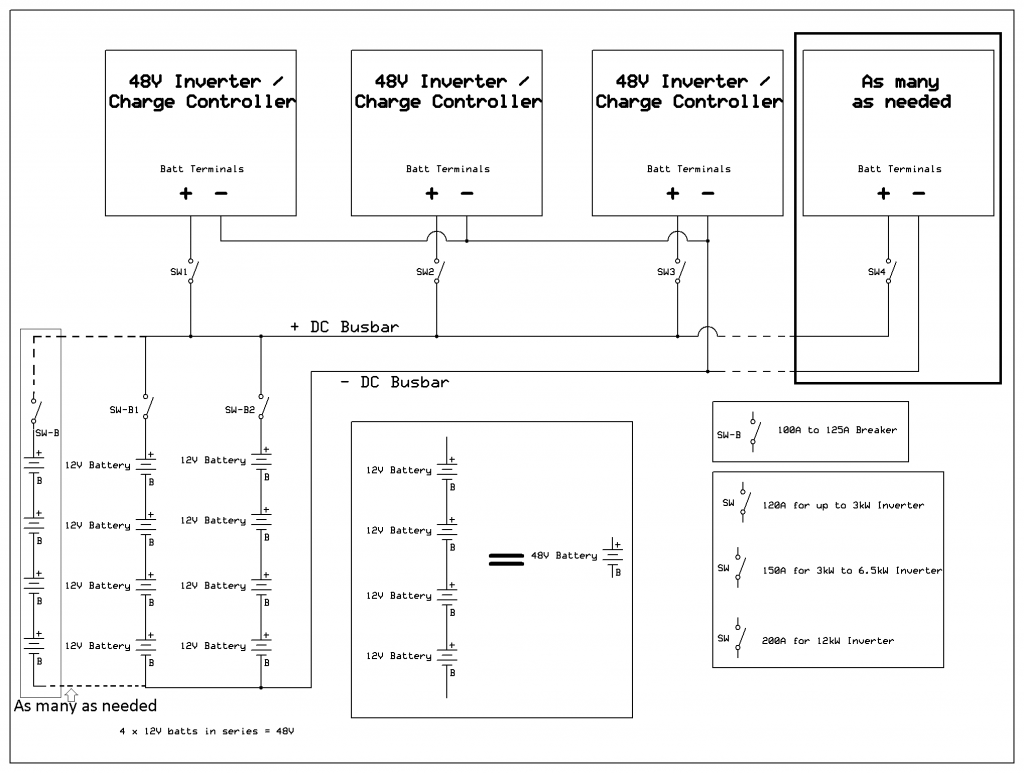

48V Battery Bank Wiring to Inverter

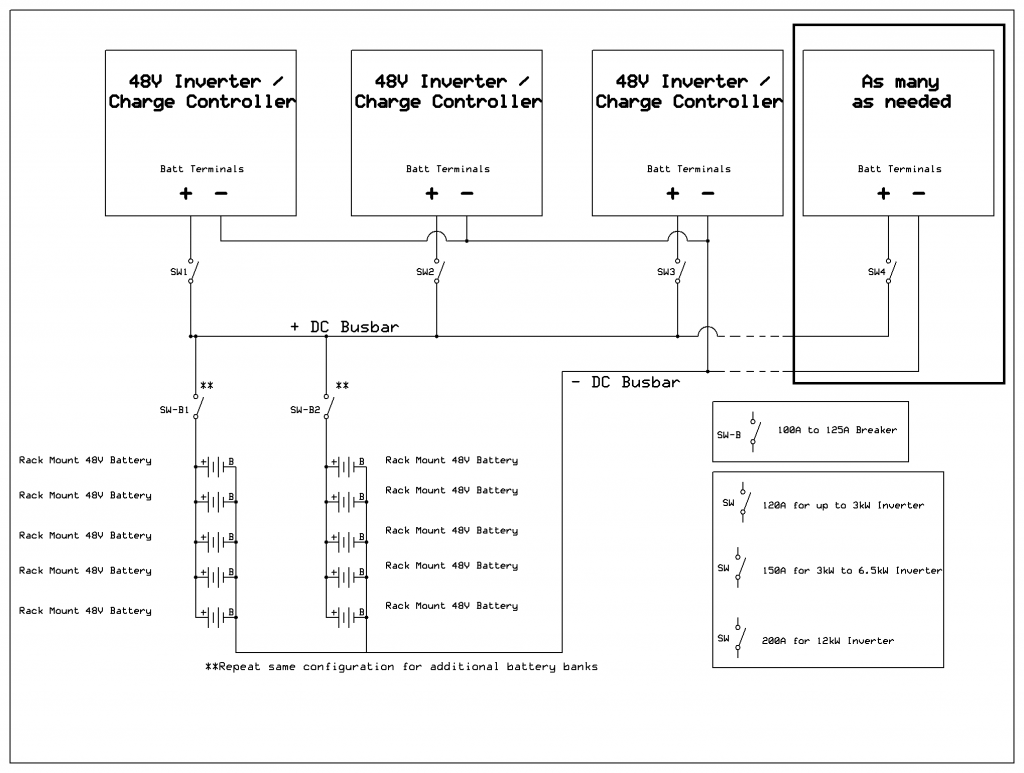

48V Rack Mount Battery Wiring to Inverter

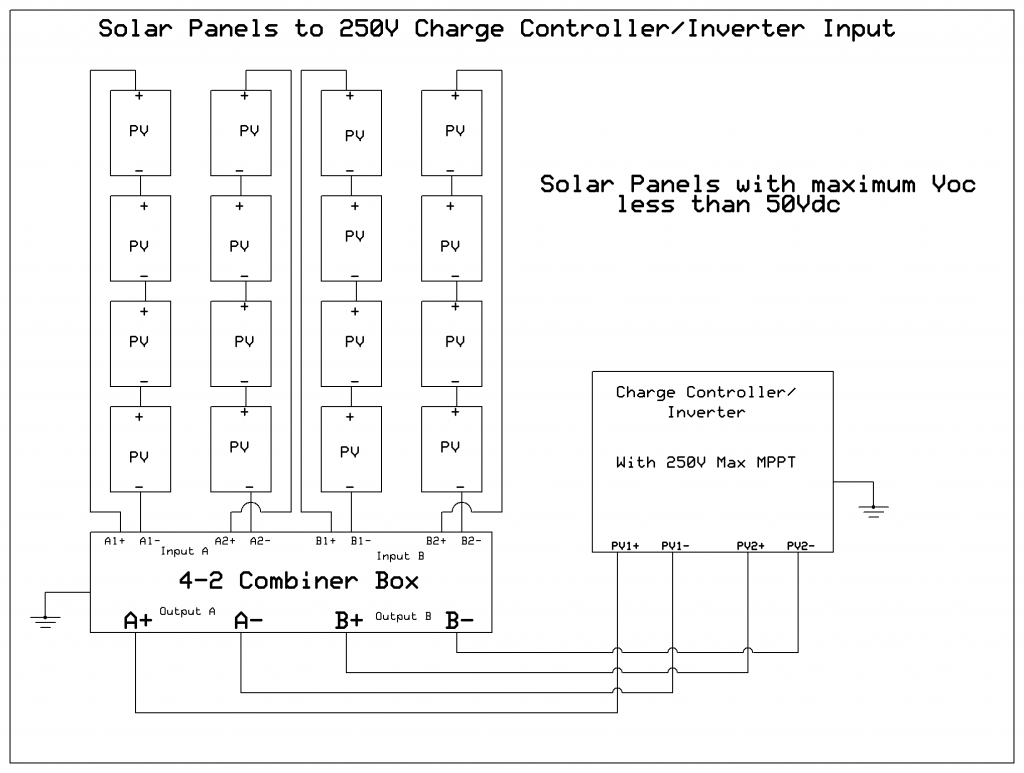

Solar Panel Wiring with 4-2 Combiner Box into 250V MPPT Charge Controller/Inverter

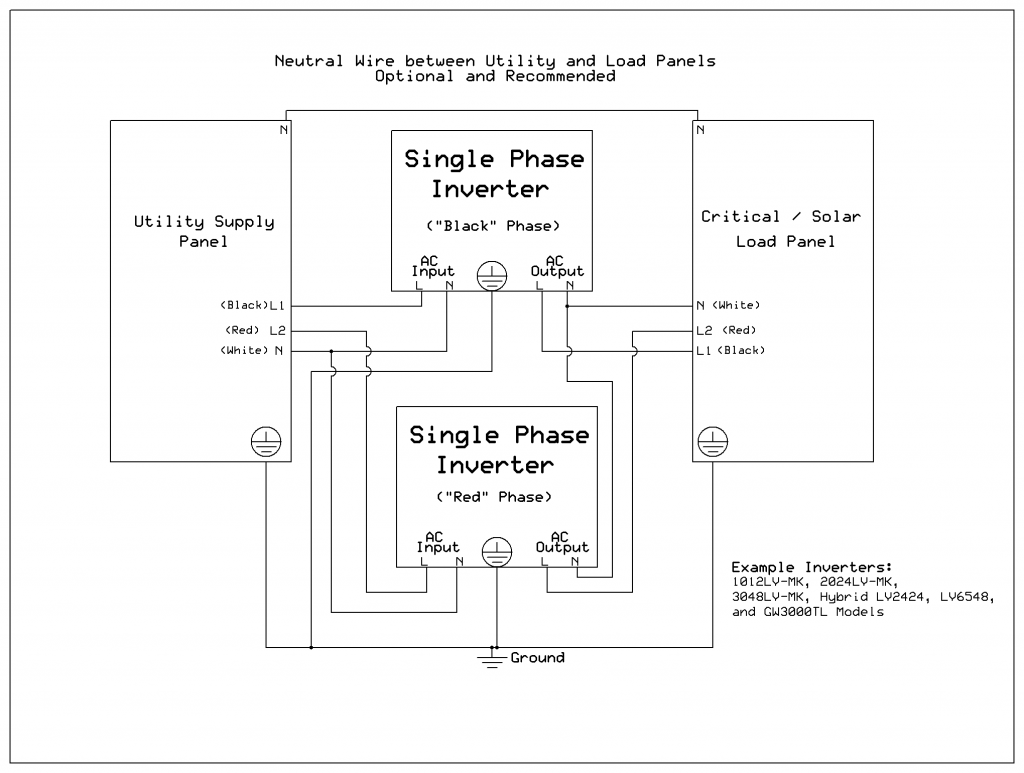

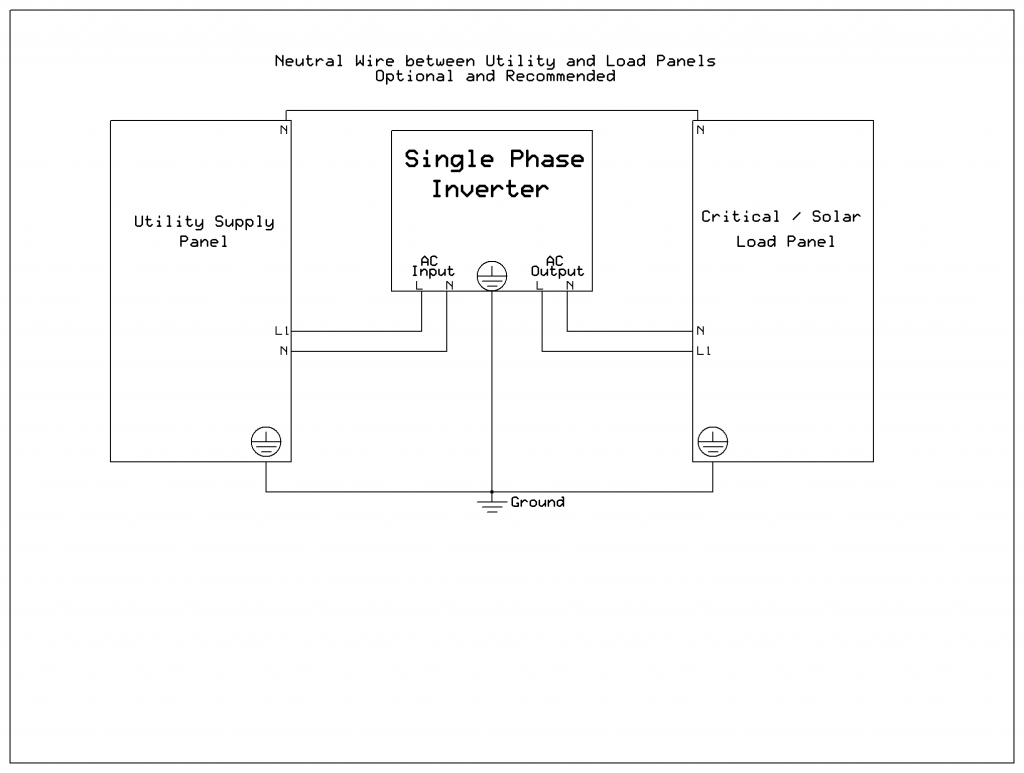

Split Phase with Two Single Phase Inverters (Example Inverters listed)

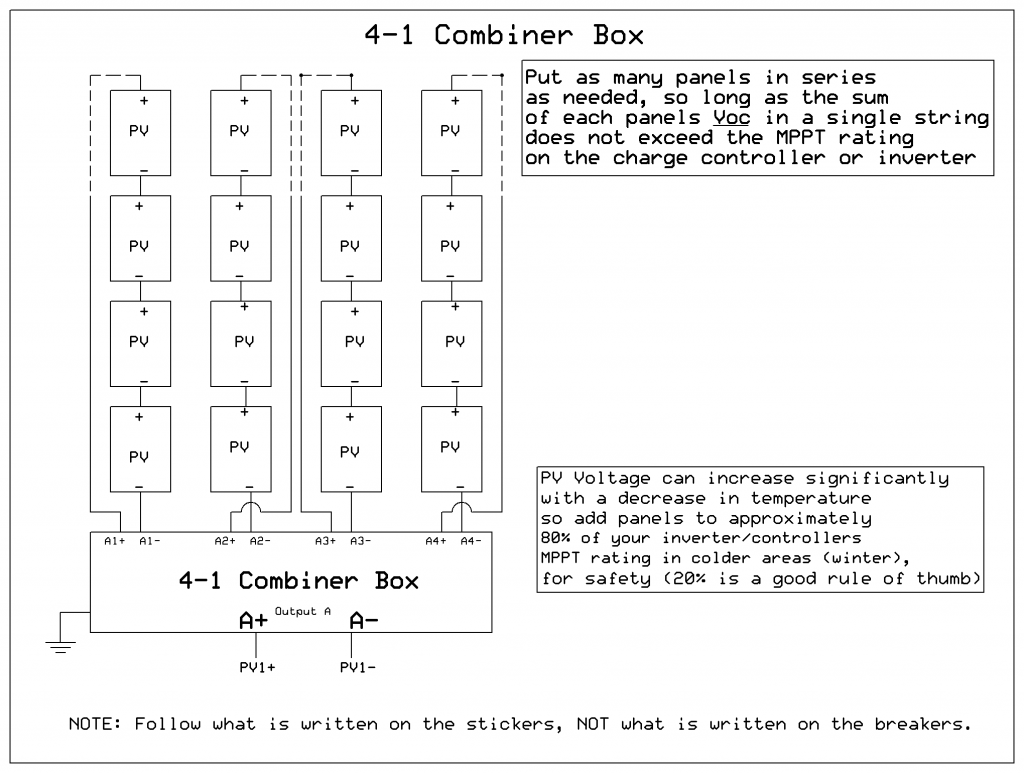

4-1 Combiner Box Wiring

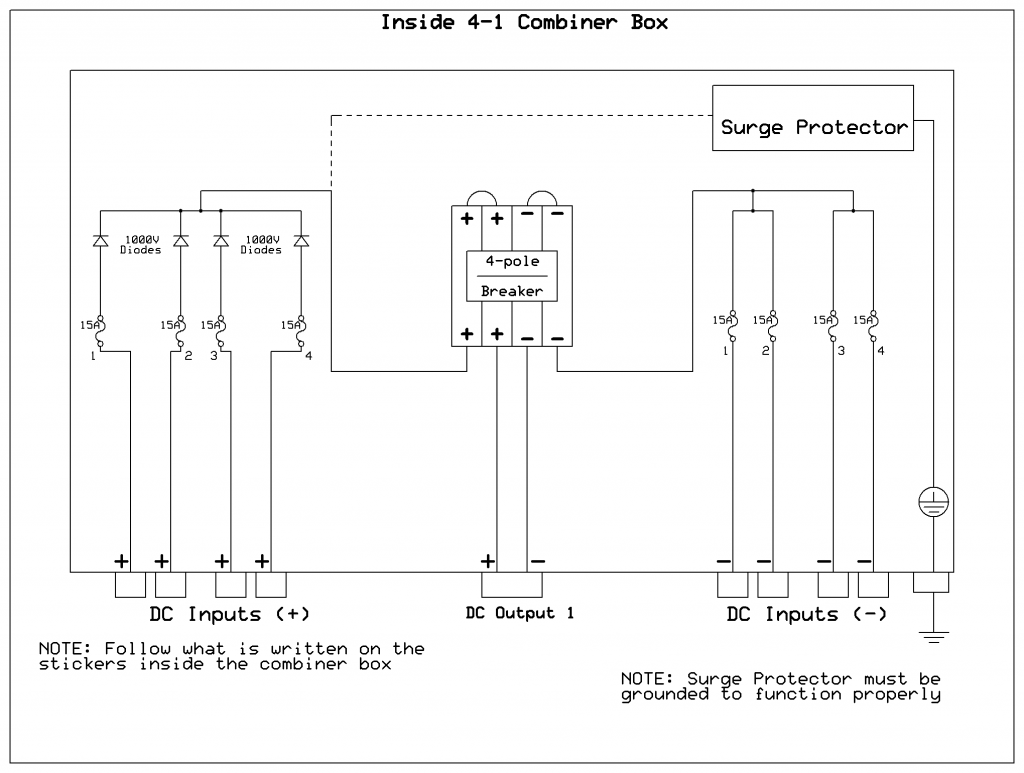

Inside 4-1 Combiner Box
4-2 Combiner Box Wiring

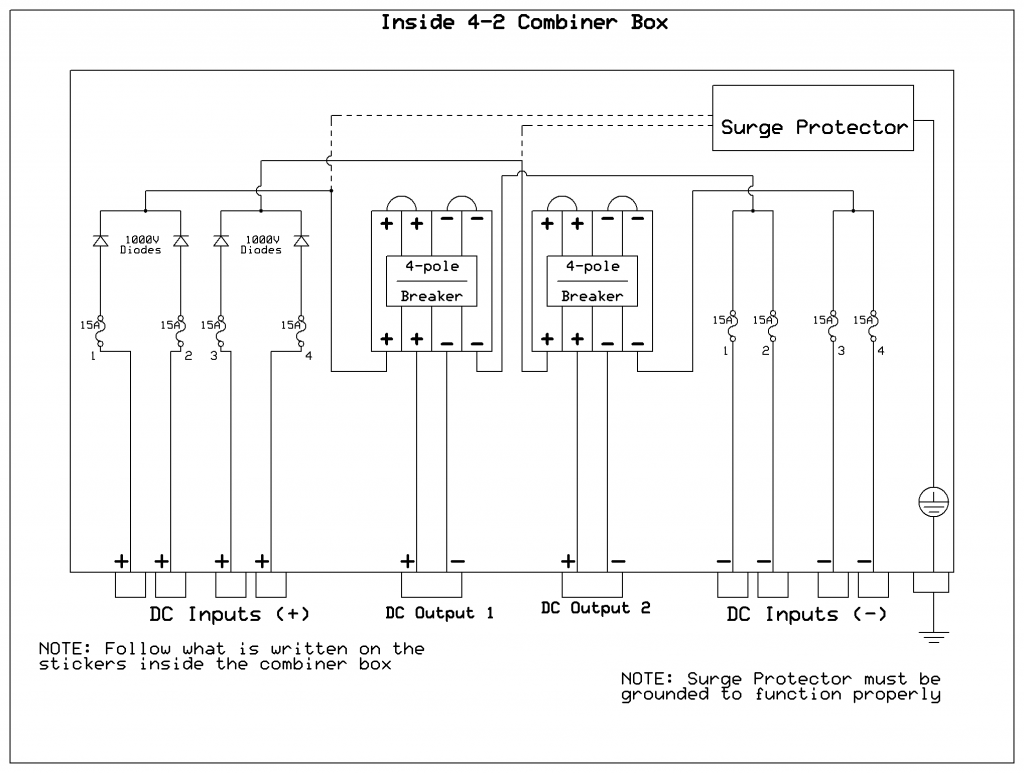

Inside 4-2 Combiner Box

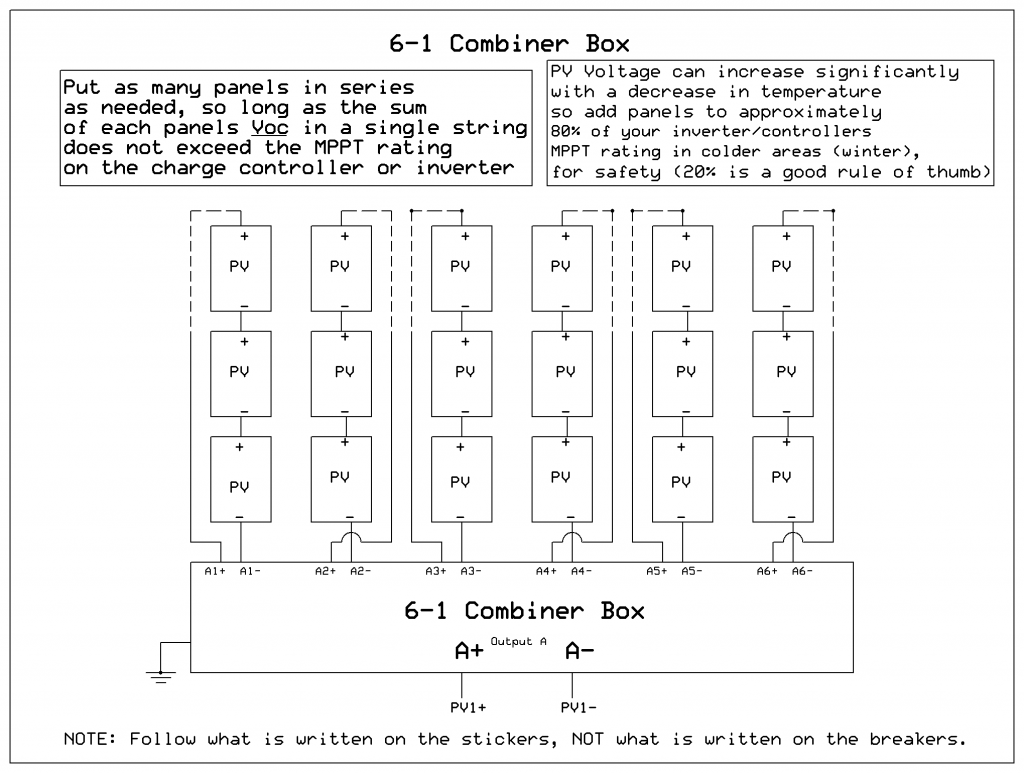

6-1 Combiner Box Wiring

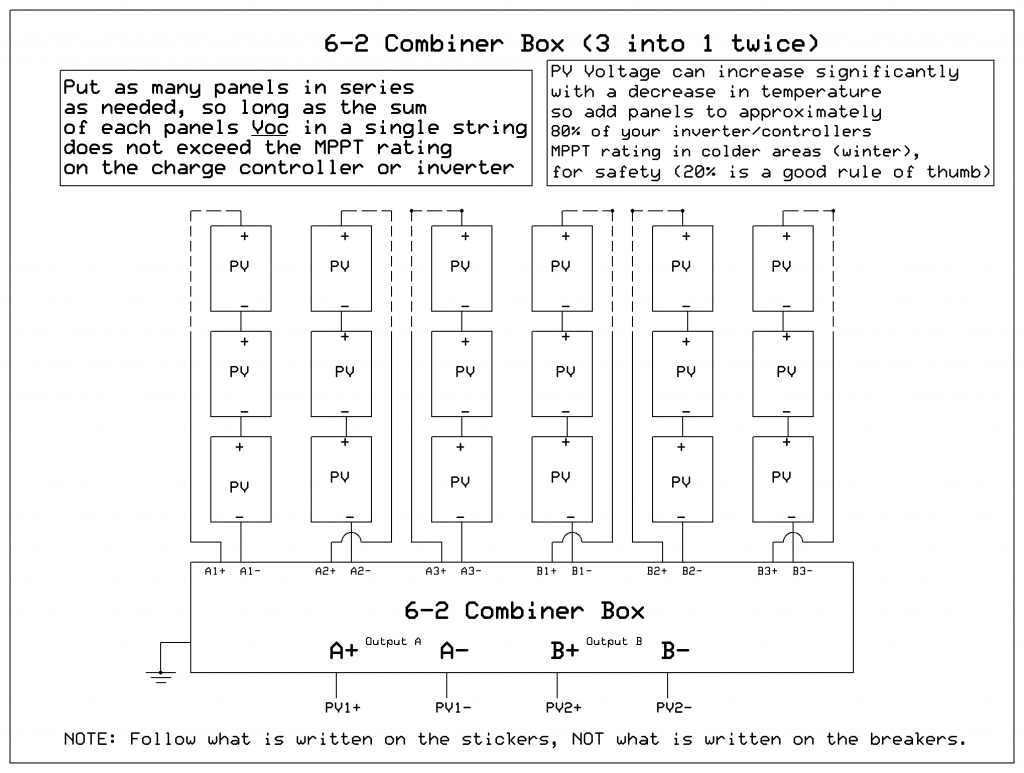

6-2 Combiner Box Wiring

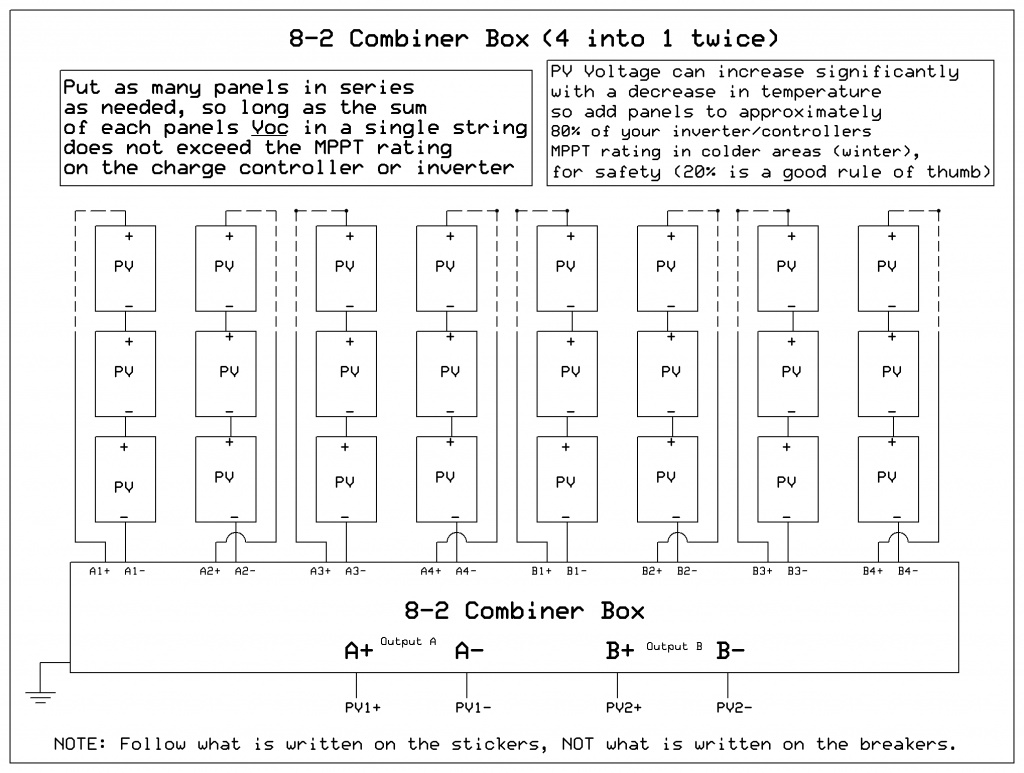

8-2 Combiner Box Wiring
24/2 Battery Equalizer Diagram
48/4 Battery Equalizer Diagram
