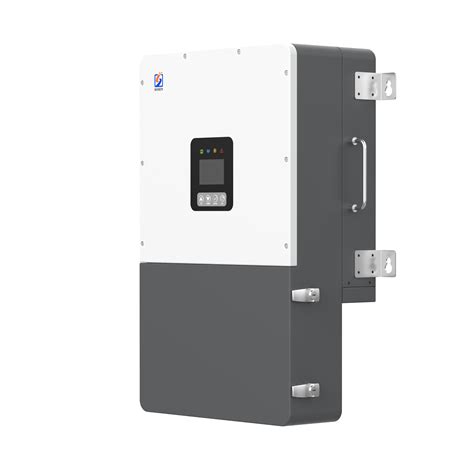

12KW Hybrid Inverter SOSEN Split Phase Inverter 120V 240V 15kW 3 input MPPT up to 550Voc each UL-Listed
12KW Hybrid Inverter SOSEN Split Phase Inverter 120V 240V 15kW 3 input MPPT up to 550Voc each UL-Listed - Image 2

12KW Hybrid Inverter SOSEN Split Phase Inverter 120V 240V 15kW 3 input MPPT up to 550Voc each UL-Listed

$2,350.00

SSE-HL8~12K-P2SA

3 MPPTs | Split-phase | LV Battery Supported

The 12kW split-phase energy storage inverter, versatile power for diverse Needs. It’s designed for for homes, villas, and small commercial applications. Enjoy flexible operation with multiple modes, U.S. standard compliance (UL 1741, UL 1547, FCC Part 15B, UL 1998, etc.), and durable NEMA 4X protection.

System Diagram

This diagram shows the 8~15kW split-phase inverter system: DC power from the battery, PV array, and diesel generator goes through safety fuses and relays, a DC isolation switch, and capacitors. The inverter then converts DC to AC, which is filtered and stabilized, before outputting clean AC power to the grid and loads.

Other Applications:

· AC Coupling with existed solar system

· Off-grid and back-up applications

· On-grid solar system without battery (SupportEPs even without battery)

· Off-grid and back-up applications

· Single and three phase paralleling system

· Energy storage system with peak shaving Function



7 in stock

Category:

Description

Related Parameters

TECHNICAL SPECIFICATION
Model SSE-HL8K-P2SA /

SSE-HL8K-P2SA-S

 SSE-HL10K-P2SA /

SSE-HL10K-P2SA-S

 SSE-HL12K-P2SA /

SSE-HL12K-P2SA-S

 SSE-HL15K-P2SA /

SSE-HL15K-P2SA-S
INVERTER INPUT / OUTPUT (GRID)
Rated Power 8 kW 10 kW 12 kW 15 kW
Rated Voltage
 120 V a.c. / 240 V a.c. (Split Phase), 280 V a.c. (2 / 3 Phase)
Rated Frequency
 60 Hz
Power Factor Range
0.8 leading~0.8 lagging
Switch Time
 <10 ms
Max. Input Current
 50 A a.c. 62.5 A a.c.
Max. Output Current
 33.4 A a.c. 41.7 A a.c. 50 A a.c. 62.5 A a.c.
Max Output Overcurrent Protection
250 V a.c. / 125 A a.c
GEN Rated Power
 8kW 10kW 12kW 15kW
BATTERY
Battery Type
Lithium / Lead-acid
Battery Voltage Range
 40~60 V d.c.
Rated Battery Voltage
 51.2 V d.c.
Max. Charge Current
 167 A d.c. 210 A d.c. 250 A d.c. 275 A d.c.
Max Discharge Current
 167 A d.c. 210 A d.c. 250 A d.c. 275 A d.c.
Reverse Connect Protection
 Yes
PV INPUT
No. of MPPT Tracker / Strings
 3 / 2+2+2 3 / 2+2+2 3 / 2+2+2 3 / 2+2+2
Max. PV Array Power
 12 kW 15 kW 18 kW 22.5 kW
Max. DC Voltage
 550 V d.c.
MPPT Voltage Range
 100~500 V d.c.
Start-up Voltage
 120 V d.c.
Max. Input Current
 26+26+26 A d.c.
Isc PV (Absolute Maximum)
 39 A d.c.
AC OUTPUT (EPS)
EPS Rated Output Voltage
120 V a.c. / 240 V a.c. (Split Phase), 208 V a.c. (2 /3 Phase)
EPS Rated Output Frequency
 60 Hz
EPS Rated Output Active Power
 8 kW 10 kW 12 kW 15 kW
EPS Rated Output Apparent Power
 8 kVA 10 kVA 12 kVA 15 kVA
EPS Rated Output Current
 33.4 A a.c. 41.7 A a.c. 50 A a.c. 62.5 A a.c.
Overload Capacity (Off Grid)
 200% 10s
EFFICIENCY
MPPT Efficiency
 99.50%
California-eficiency
 96.50%
Max. Eficiency
 97.50%
PROTECTION & FEATURE
Insulation Monitoring
 Yes
Residual Current Monitoring
 Yes
Parallel Function
 Yes
Protection Degree
 NEMA 4X
Certifications
 UL 1741, FCC Part 15B, UL 1547, UL 1699B, HECO SRD 2.0, CEC efficiency
Other Protection
Overload, Over temperature, Short circuit, Anti-islanding
GENERAL PARAMETER
Storage Temperature
 -25℃~+60℃ (-13℉~+140℉)
Operating Temperature
 -25℃~+60℃ (-13℉~+140℉), >45℃ (+113℉) Derating to 60%
Humidity
  0~95% (Non-condensing)
Operating Altitude
 4000 m (>2000 Derating)
Noise
 <45 dB
Machine Dimensions (W*H*D)
 466*756*242 mm (18.35*29.76*9.35 inch)
Machine Weight / N.W.
 45 kg (99.21 lbs)
DISPLAY & COMMUNICATION
Display
 App+LED / LCD (-S version)
Interface
 RS485 / WiFi / CAN (Optional: Bluetooth / LAN / 4G / Meter))
  • The AC voltage and frequency range can differ according to the grid standards of each country.
  • Please note that all specifications are subject to change without prior notice.

Additional information

Weight 105 lbs
Dimensions 34 × 21 × 12 in
