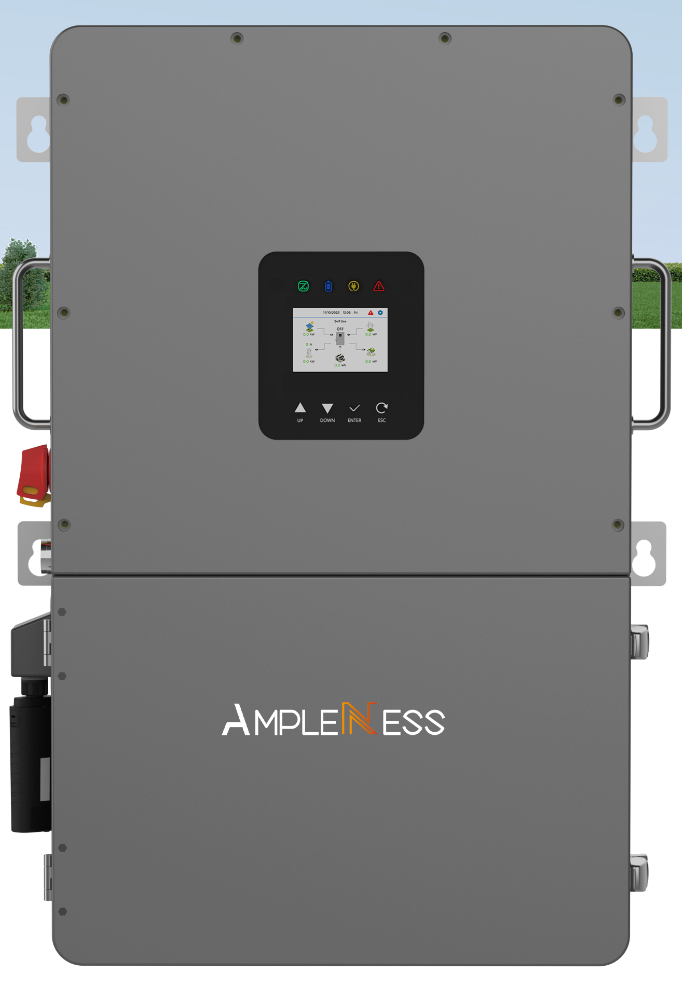

15kW Split phase Hybrid Inverter 22.5kW PV input, 3 x MPP, 200A bypass

15kW Split phase Hybrid Inverter 22.5kW PV input, 3 x MPP, 200A bypass

Original price was: $3,899.00.Current price is: $3,399.00.

Brand：Ampleness
Rated Voltage：120Va.c./240Va.c.(Split Phase),208Va.c.(2/3Phase)
No. of MPPT Tracker：Integrated 3 MPPTS
Multiple operating modes：A variety of intelligent working modes
Real-time control：Remote monitoring via APP or Web
Full Protocol Support：Support BMS communication
Protection Degree：IP66, long lifespan
Category:

Description

Model AP-L8K-SPSA AP-L10K-SPSA AP-L12K-SPSA AP-L15K-SPSA
Product Type Hybrid Inverter
Battery
Battery type Li-ion/Lead-acid
Battery voltage range 40-60 Vd.c
Rated battery voltage 51.2 Vd.c
Max.charge/discharge Power 8 kW 10 kW 12 kW 15 kW
Rated charge/discharge current 167 A d.c. 210 A d.c. 250 A d.c. 275 A d.c.
Max. charge/discharge current 167 A d.c. 210 A d.c. 250 A d.c. 275 A d.c.
Reverse Connect Protection Yes
Communication interface CAN/RS485
Input (PV)
Recommended Max. PV array power for each input 12 kW 15 kW 18 kW 22.5 kW
Max. operating PV input current ( PV 1 /PV 2 / PV3) 26A d.c+26A d.c+26A d.c
Max. Isc PV ( PV 1 /PV 2 / PV3) 39A d.c
Vmax PV (Max. PV input voltage) 550 V d.c
MPPT Voltage Range 120-480V dc
Full power MPPT voltage range 120-480 V d.c 125-480 V d.c 145-480 V d.c 195-480 V d.c
Start-up Voltage 120V dc
Number of MPP Trackers 3
Strings per MPP Tracker 2
Number of PV input 6
Grid AC input and AC output
Grid rated voltage 120Vac / 240Vac（Split phase），208Vac（2/3phase）
Grid rated frequency 60Hz
Grid rated input active power 8 kW 10 kW 12 kW 15 kW
Grid rated input apparent power 8 kVA 10 kVA 12 kVA 15 kVA
Grid max. input active power 15kW 15kW 15kW 19.2kW
Grid max. input apparent power 15kVA 15kVA 15kVA 19.2kVA
Grid rated output active power 8 kW 10 kW 12 kW 19.2kW
Grid rated output apparent power 8 kVA 10 kVA 12 kVA 15 kVA
Grid max. output active power 8 kW 10 kW 12 kW 15 kW
Grid max. output apparent power 8 kVA 10 kVA 12 kVA 15 kVA
Grid rated input current 33.4 A a.c 41.7 A a.c 50 A a.c 62.5 A a.c
Grid max. input current 62.5A a.c 62.5A a.c 62.5A a.c 80A a.c
Grid rated output current 33.4 A a.c 41.7 A a.c 50 A a.c 62.5 A a.c
Grid max. output current 33.4A ac 41.7 A a.c 50 A a.c 62.5 A a.c
Grid power factor 0.8 leading to 0.8 laggings
Grid input and output Inrush current 250A a.c @ 3μs
Max. Grid output fault current 67A a.c @0.2μs 84A a.c @0.2μs 100A a.c @0.2μs 125 A a.c @0.2μs
Max. Grid output overcurrent protection 240V a.c /80 A a.c
Grid input Icc (Rated conditional short-circuit current) 250A a.c
Grid input Icw (Rated short-time withstand current) 250A a.c
Total Harmonic Distortion(THDi, rated power) <3%
EPS rated output Voltage 120Vac / 240Vac（Split phase），208Vac（2/3phase）
EPS rated output frequency 60Hz
EPS rated output active power 8 kW 10 kW 12 kW 15 kW
EPS rated output apparent power 8 kVA 10 kVA 12 kVA 15 kVA
EPS max. output active power 8 kW 10 kW 12 kW 15 kW
EPS Max. output apparent power 8 kVA 10 kVA 12 kVA 15 kVA
EPS rate output current 33.4 A a.c 41.7 A a.c 50 A a.c 62.5 A a.c
EPS output power factor 0.8 leading to 0.8 lagging
EPS output peak power 200% overload(<10s)
EPS output Inrush current 200A a.c @ 10ms
EPS max. output fault current 200A a.c @ 10ms
Switch Time <10ms
Total Harmonic Distortion(THDv, linear Load) <3%
Compatible with the Generator Optional
Efficiency
MPPT Efficiency 99 .50%
California-efficiency 96.50%
Max.efficiency 97.50%
Standard
Safety UL1741 IEC62116 IEC61683
EMC FCC Part15 Class B
General Parameter
Degree of ingress protection IP66
Protection class I
Environment category Indoor&Outdoor
Wet location classification Yes
Pollution degree PD3
Operating altitude 4000 m(>2000 Derating)
Operating ambient temperature -25 – +60 °C (linely derating to 60% when exceed +45 to +60 °C)
Operating relative Humidity 0-100% (non-condensing)
Storage Temperature -25- +60 °C
Storage relative Humidity 0-100% (non-condensing)
Noise Emission(typical) <45 db
Over voltage Category AC: III,   PV: II
Electrical supply system TN, TT
Dimension (WxHxD) 466*756*242mm
Net Weight 45kg
Cooling Mode Intelligent Air Cooling
Topology Non-isolated
Active anti-islanding method Active frequency drift
Communication RS485/Wifi/Bluetooth/LAN/CAN/DRM/Meter
Yes/ Yes/ Opt/Opt/ Yes/ Yes/ Opt
LED indicator LCD+LED+APP

Additional information

Weight 145 lbs
Dimensions 40 × 22 × 14 in

User Manual

USER MANUAL-AP-8-15K-P2SA-20260714



Specifications

DATASHEET-AP-L8K~15K-SPSA-20260509
