Description
You can’t beat this price anywhere, limited stocks.
Note, this listing does not offer free shipping, (full pallet listing offers free shipping)
Panels made in the USA (Georgia) these are on Flash Sale, panels are brand new, sold as is, without warranty as factory has closed
Free shipping with this and any other products added to this pallet (stacked on top) to your door, with liftgate.
Free shipping only applies to lower 48 states, if you live in AK, HI, PR, we can ship free to your forwarder in the lower 48
Product Characteristics
| Model No. |
|
| Warranty |
|
| Power Warranty |
25 Years of 84.8% Output Power |
| Electrical Data at STC |
|
| Maximum Power (Pmax) |
|
| Voltage at Maximum Power (Vmpp) |
|
| Current at Maximum Power (Impp) |
|
| Open Circuit Voltage (Voc) |
|
| Short Circuit Current (Isc) |
|
| Panel Efficiency |
|
| Power Tolerance (Positive) |
|
|
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C |
| Electrical Data at NOCT |
|
| Temperature |
45±2 °C |
|
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C |
| Thermal Ratings |
|
| Operating Temperature Range |
-40~85 °C |
| Temperature Coefficient of Pmax |
-0.36 %/°C |
| Temperature Coefficient of Voc |
-0.29 %/°C |
| Temperature Coefficient of Isc |
0.048 %/°C |
| Maximum Ratings |
|
| Maximum System Voltage |
1500 V |
| Series Fuse Rating |
20 A |
| Material Data |
|

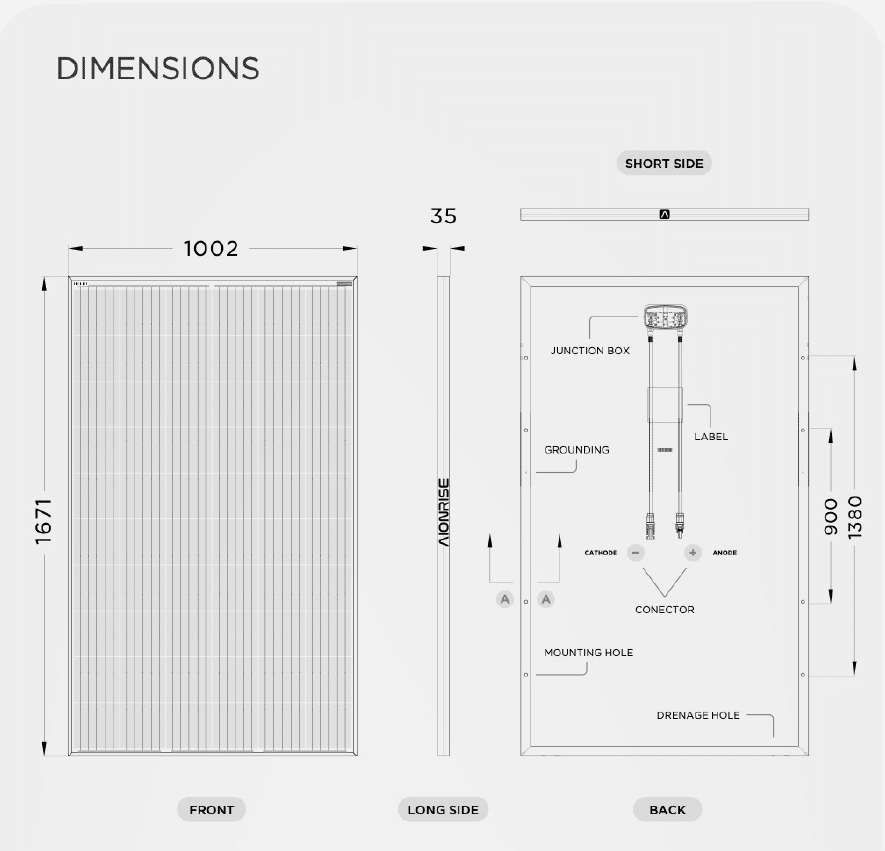

| Panel Dimension (H/W/D) |
1671x1002x35 mm |
| Weight |
18.3 kg |
| Cell Type |
PERC |
| Cell Size |
158.75×158.75 mm |
| Cell Number |
60 |
| Glass Type |
Anti-reflection Coating |
| Glass Thickness |
3.2 mm |
| Junction Box Diodes |
3 |
| Junction Box Protection Class |
IP 67 |
| Connector Type |
MC4 |
| Cable Crossection |
4 mm2 |
| Cable Length |
1000 mm |
