4-2 Combiner Diode for 4 into 2, 8 into 4, etc diode retrofit on older Combiner boxes (for 2 modules) – spare part.

Description

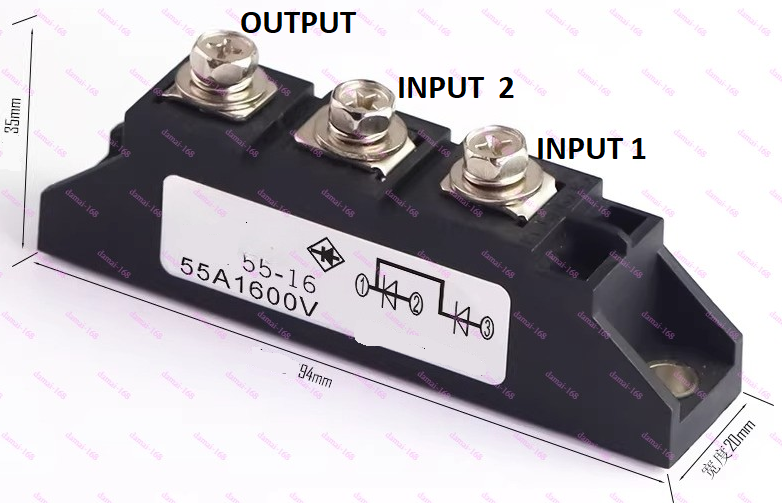

Remove old Diode board,  clip off the red wires coming from the Fuse modules right at the Printed Circuit Green board,  crimp ring lugs into them,  attach to INPUTS 1 and INPUT 2,  Attach Output terminal to existing ring terminal on Old red wire with ring terminal located at the top of the Green PCB

Use metal self tapping screws to screw new diode module onto old aluminum heat sink

Old Green PCB can be discarded, little black wire can be clipped off at source.  (not required)
