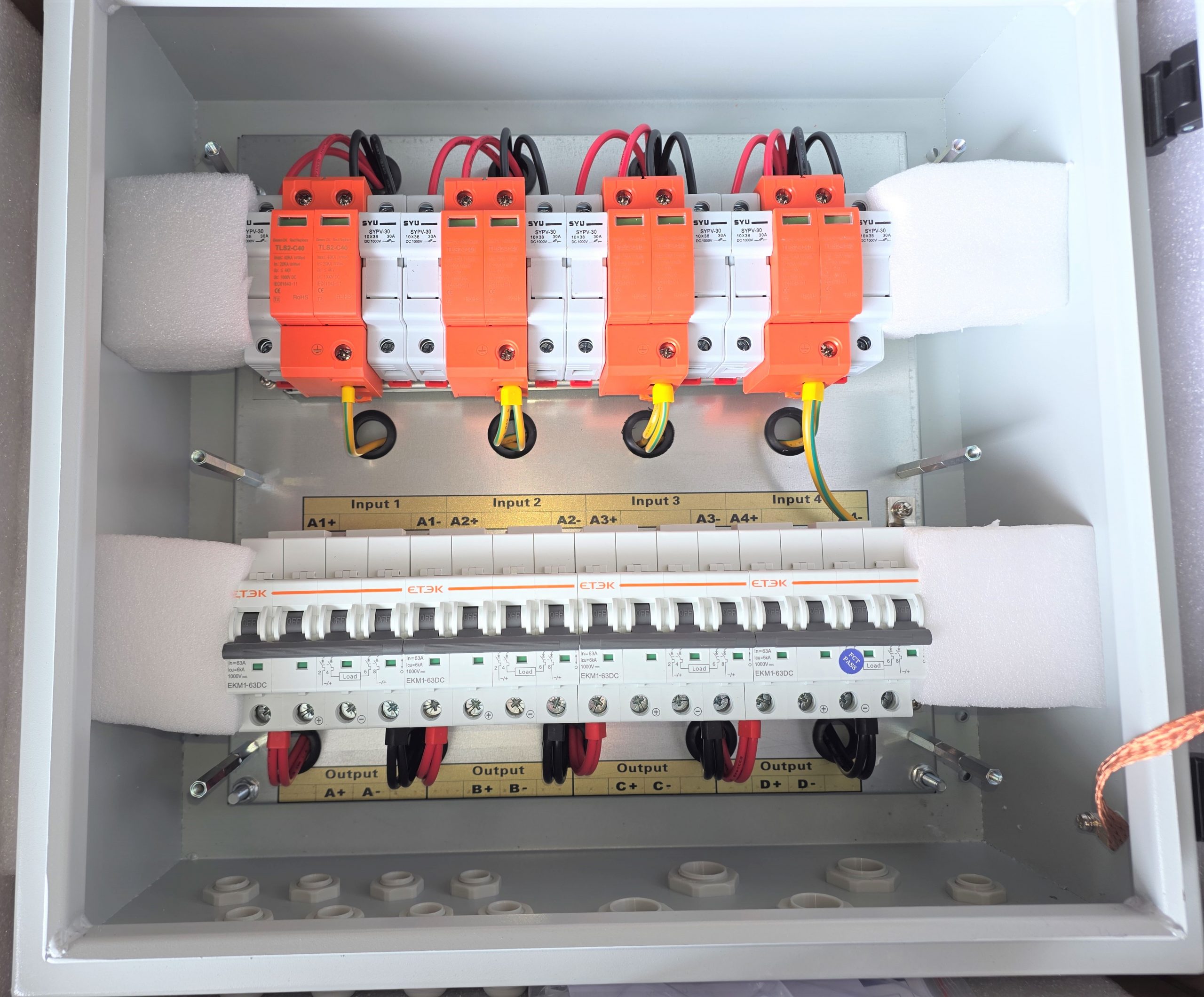

4-4 Solar Panel Protection Box – 4 in 4 out MPPT Inputs – (4 x 63A max output) – Ideal For 4 PV Inputs – Fuse + Surge Protection

Description

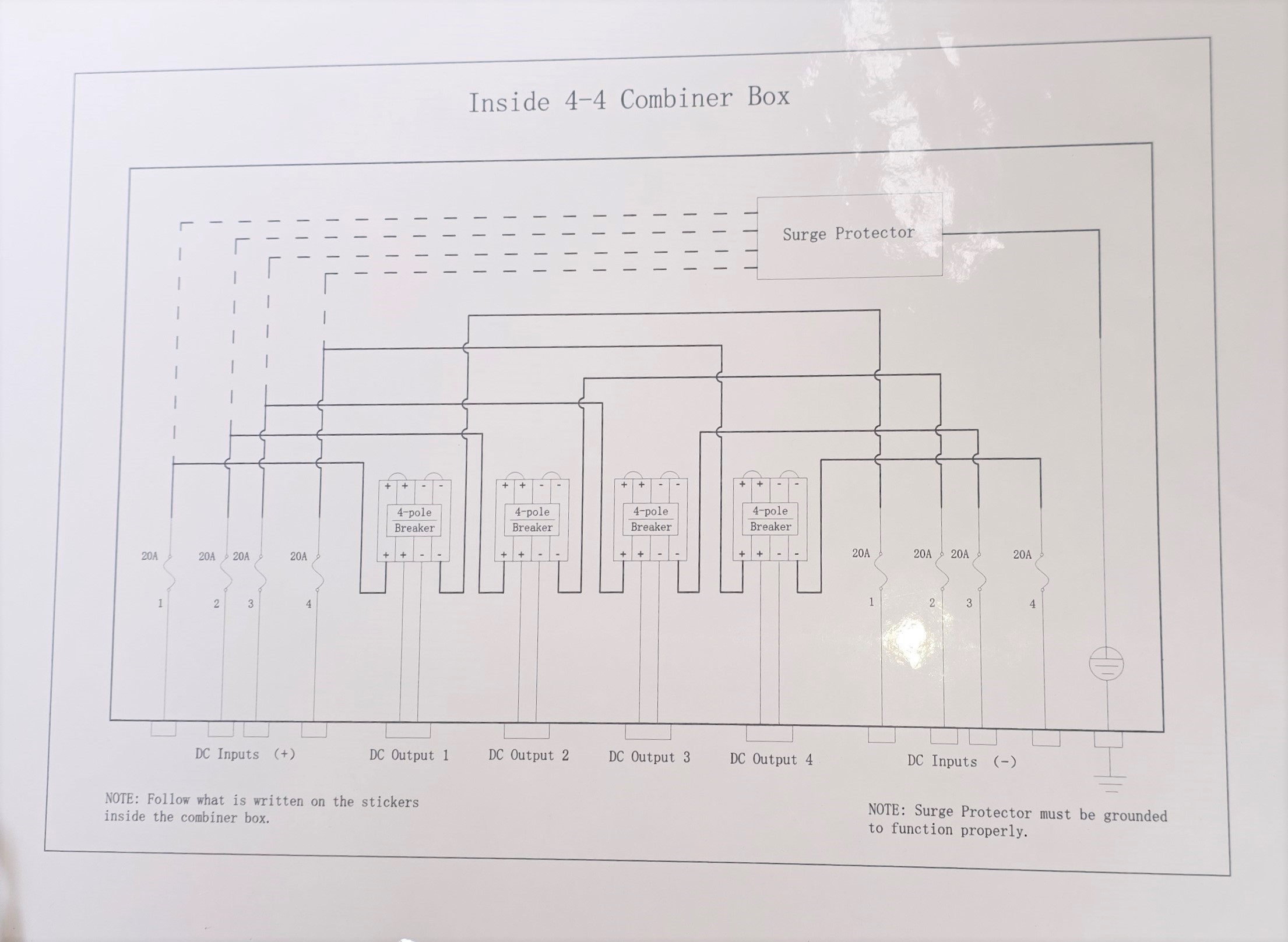

4 inputs  – 4 outputs ,  no strings are paralled, lightning and surge protection for each PV input

Solar Combiner boxes make connecting multiple solar panels in series and parallel a breeze.

This model is specifically for use as a PV Isolator box with surge protection, no strings are paralleled, and no diodes.

New design!

All your panel wiring troubles made really simple

Built in DC Disconnect.

Built in DC Overcurrent protection.

Built in Lightning protection

Built in fuse protection



Features:

Metal Box  (no melting or fire hazard) IP65 Outdoor Weatherproof

Key Lockable

Each Circuit is fused 15A (on both Positive and Negative terminals )

Reverse Polarity Diode Protection

Available in a variety of configurations (4 to 1 , 4 to 2, 6 to 1 , 8 to 2, 8 to 1)

Acrylic face plate cover for full protection (most other suppliers simply ignore this feature) – often hundreds of volts

Surge Protection – 1000V

Specs:

15A to 50A per PV Input string (Fuse dependent)

Max 4 x 63A  DC Output.
