BOVIET 540 Watt – PERC 144 Split Cell Bifacial Clear- BVM7612M-540-H-HC-BF-DG – 31 Per Pallet (25c per watt)

$4,099.00

SPEC SHEET

https://bovietsolar.com/wp-content/uploads/Boviet-Solar_13.-PERC_Vega-Series_Mono_Bifacial_Utility_PV-Module_Double-Glass_435-460W_Sept2023.pdfPDF – https://watts247.com/manuals/solarpanels/Boviet/BVM6612M-540-HC-BF-DG.pdf

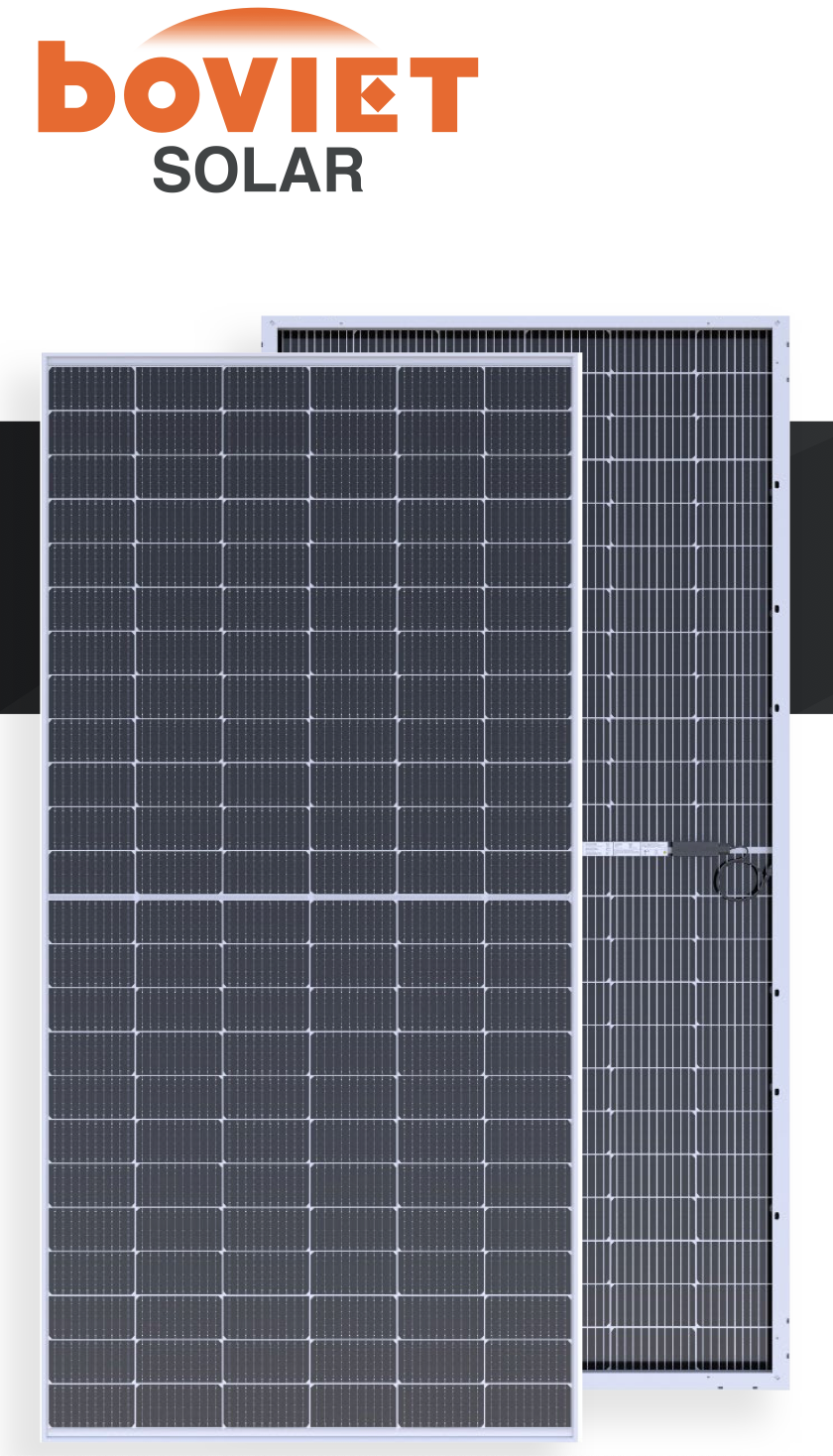

Boviet Solar USA BVM7612M540-H-HC-BF-DG 540Watt 144 1/2 Cells Bifacial Clear Monocrystalline 35mm Silver Frame Solar Panel

Manufacturer Part#: BVM7612M540-H-HC-BF-DG

Boviet Solar USA is a global leader in solar panel manufacturing technology that designs and supplies premium solar modules and solar cell energy products.

  • Withstand up to 5400 Pa snow load and 2400 Pa wind load
  • Rugged design for long-term durability; passed extended reliability tests
  • 12-year product warranty
Specifications

Full data sheet can be found in the Document(s) tab above.

Electrical Data – STC
Maximum Power (Pmax) [W] 540
Maximum Power Current (Imp) [A] 12.76
Maximum Power Voltage (Vmp) [V] 42.40
Short Circuit Current (Isc) [A] 13.55
Open Circuit Voltage (Voc) [V] 49.89
Module Efficiency [%] 20.7

STC: AM1.5, Irradiance 1000W/m2, 25°C

Electrical Data – NOCT
Maximum Power (Pmax) [W] 425
Maximum Power Current (Imp) [A] 10.32
Maximum Power Voltage (Vmp) [V] 41.20
Short Circuit Current (Isc) [A] 10.78
Open Circuit Voltage (Voc) [V] 49.79

NOCT: AM1.5, Irradiance 800W/m2, 20°C, Wind speed 1m/s

Mechanical Data
Solar Cell Bifаcial Monocrystalline 7.17 x 3.58 in
Double Glass 2.0 mm AR coating solar glass+2.0 mm solar glass, low iron
Frame Anodized aluminum alloy
Dimension 90.4 x 44.65 x 1.38 in
2,296 x 1,134 x 35 mm
Weight 73.86 lbs / 33.50 kg
SKU: BVM6612M-540-HC-BF-DG Category:

Additional information

Weight 2400 lbs
Dimensions 92 × 45 × 50 in
