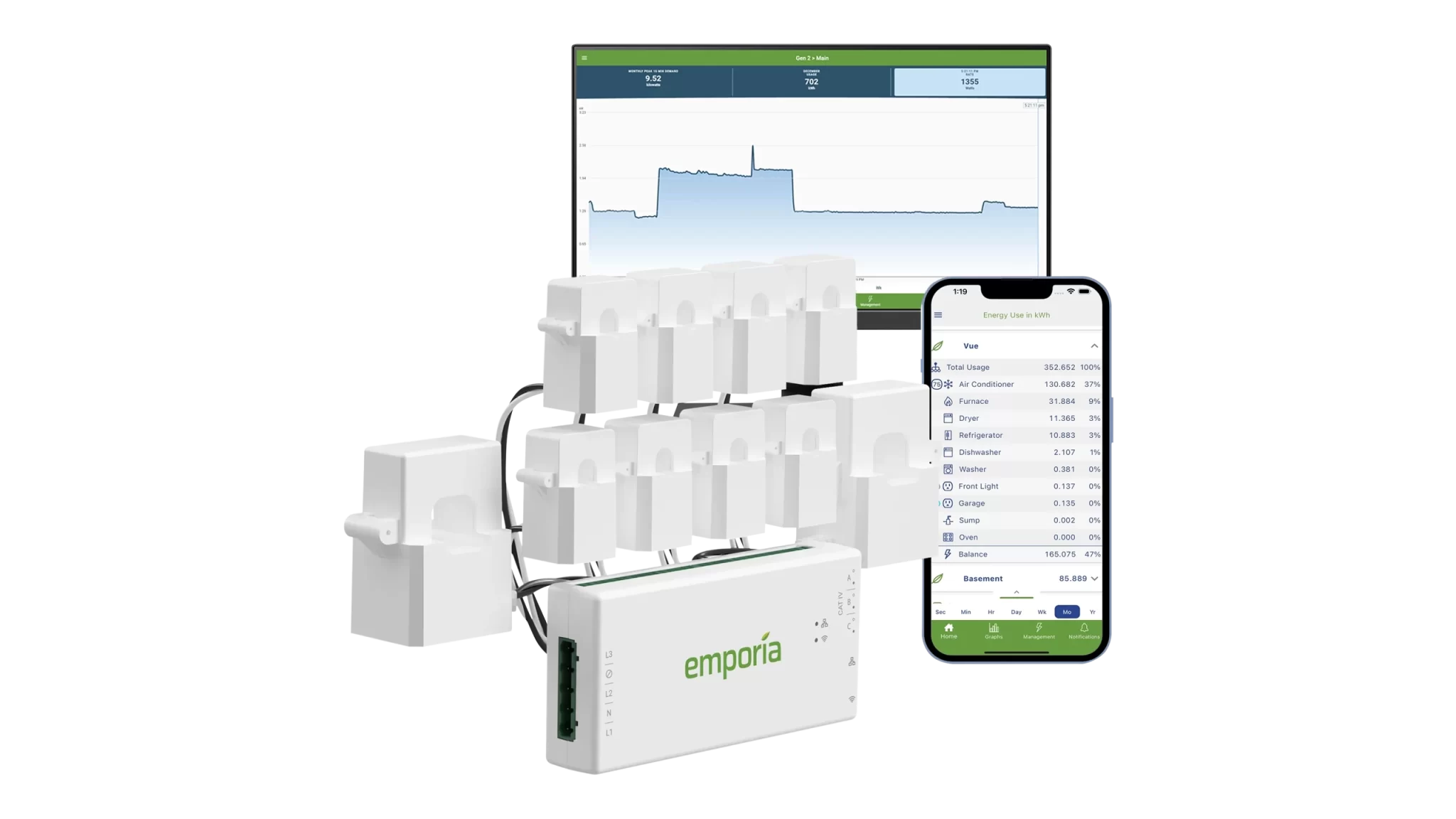

The Emporia Vue Energy Monitor allows complete management and control over the home’s energy. This energy monitor can limit energy use in certain appliances while ensuring critical loads remain powered. It can also be set to use solar only when excess is available. The Vue Gen 3 comes with 2 primary current sensors (200A), and the option of either 8 or 16-branch current sensors allows for monitoring of the whole system regardless of where the hub is set up. This device allows real-time monitoring when set up with wifi. The Vue 3 Energy Monitor is installed in most common electrical panels to send usage and production data to the Emporia cloud and mobile app. With real-time reporting, users can control unnecessary consumption and run more efficient energy systems, whether in mobile, off-grid, or at home. Automatically save energy and money!
Specifications:
Real-time energy Data
Two main (200A) current sensors for service mains
8 or 16 branches (50A) current sensors for individual circuits
Supports single-phase, single-split-phase, and 2-wire systems
Specifications (Advanced):
Supported Systems: Single phase, 2-wire systems; Single-split phase, 3-wire systems; 3-phase, 4-wire Wye systems with earthed (TN or TT) neutral (no-Delta)
CT Current Sensors: Up to 3 x 200A mains and up to 16 x 50A branch circuits
Max Voltage Sensing: 264VAC L-N per channel
WIFI: 2.4 GHz, IEEE 802.11b/g/n
Ethernet: 10/100Base-T, IEEE 802.3
Operating Conditions: -40° – 122° F (-40° – 50° C) | 0-80% RH | 3,000 meters above sea level | Indoor | Dry location | Pollution Degree 2
