H6548S similar to LV6548 6.5kW 120V Stackable inverter 2 x 4kw 250V MPPT Inputs – Great Price !

$950.00

Category:

Description

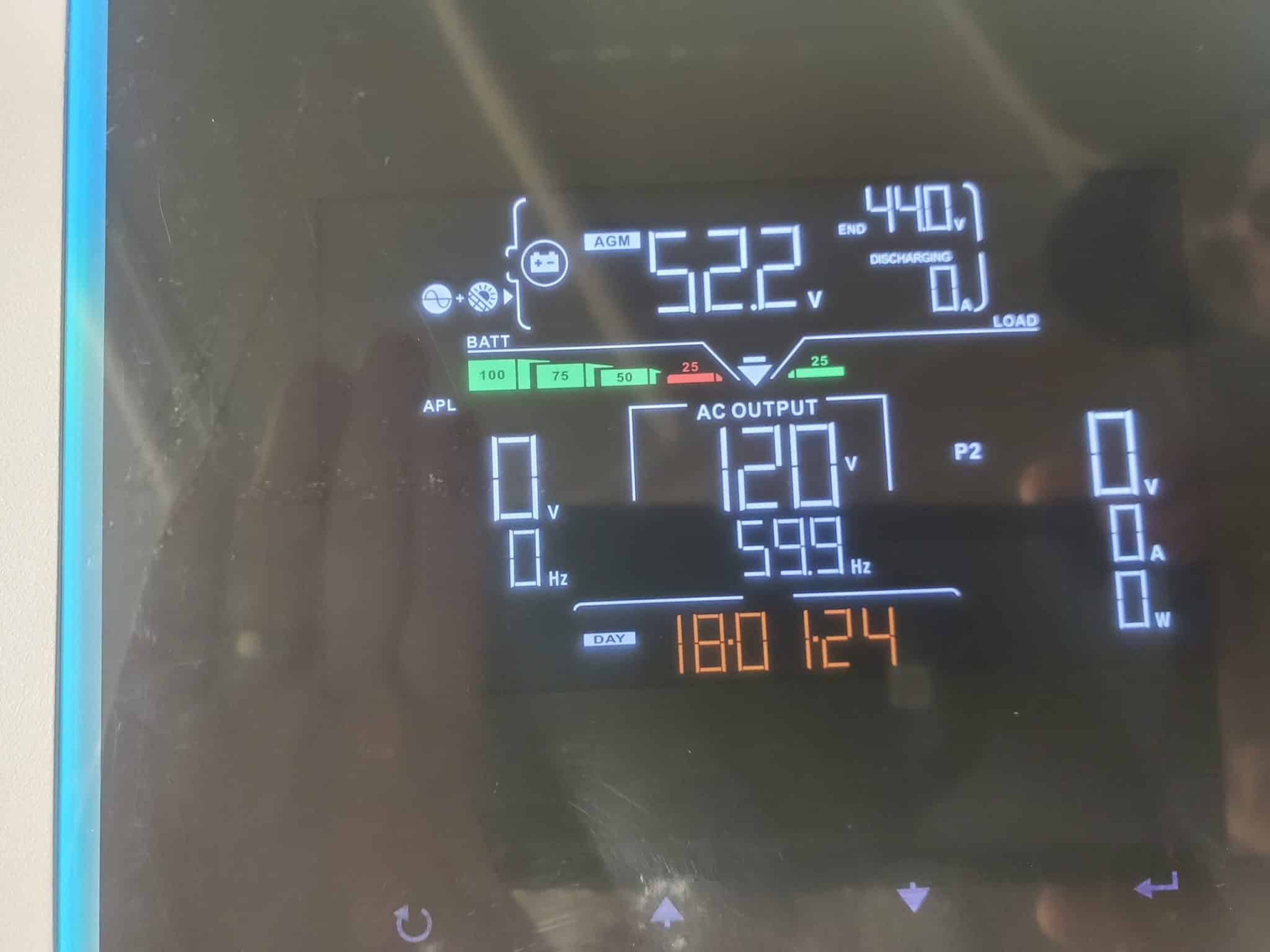

Note,  these will not parallel with LV6548,  they are built on a new platform with new screen, etc, although they are indentical in every other way

Parallel kits built in.

2 yr US Warranty ( details included inside package)

Features:

  • UL Certification
  • Status indication with RGB lights
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
  • Supports USB On-the-Go function
  • Data log events stored in the inverter
  • Reserved communication port for BMS (RS485, CAN-BUS or RS232)

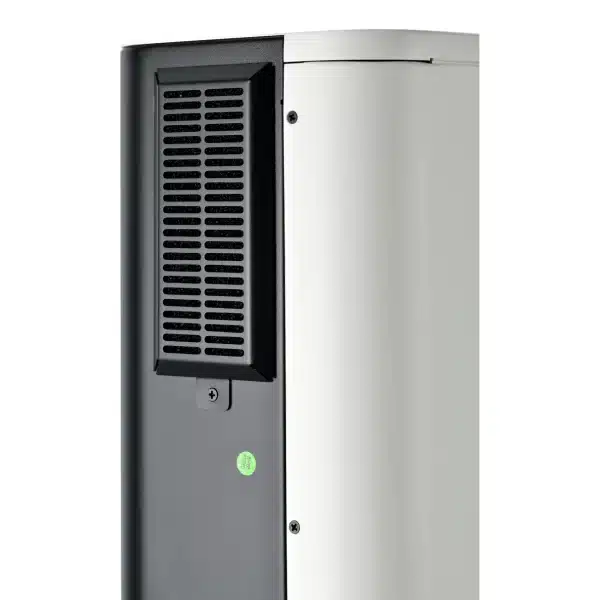

  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Configurable AC/PV output usage timer and prioritization
  • Selectable high power charging current
  • Selectable input voltage range for home appliances and personal computers
  • Compatible to Utility Mains or generator input
  • Built-in anti-dust kit

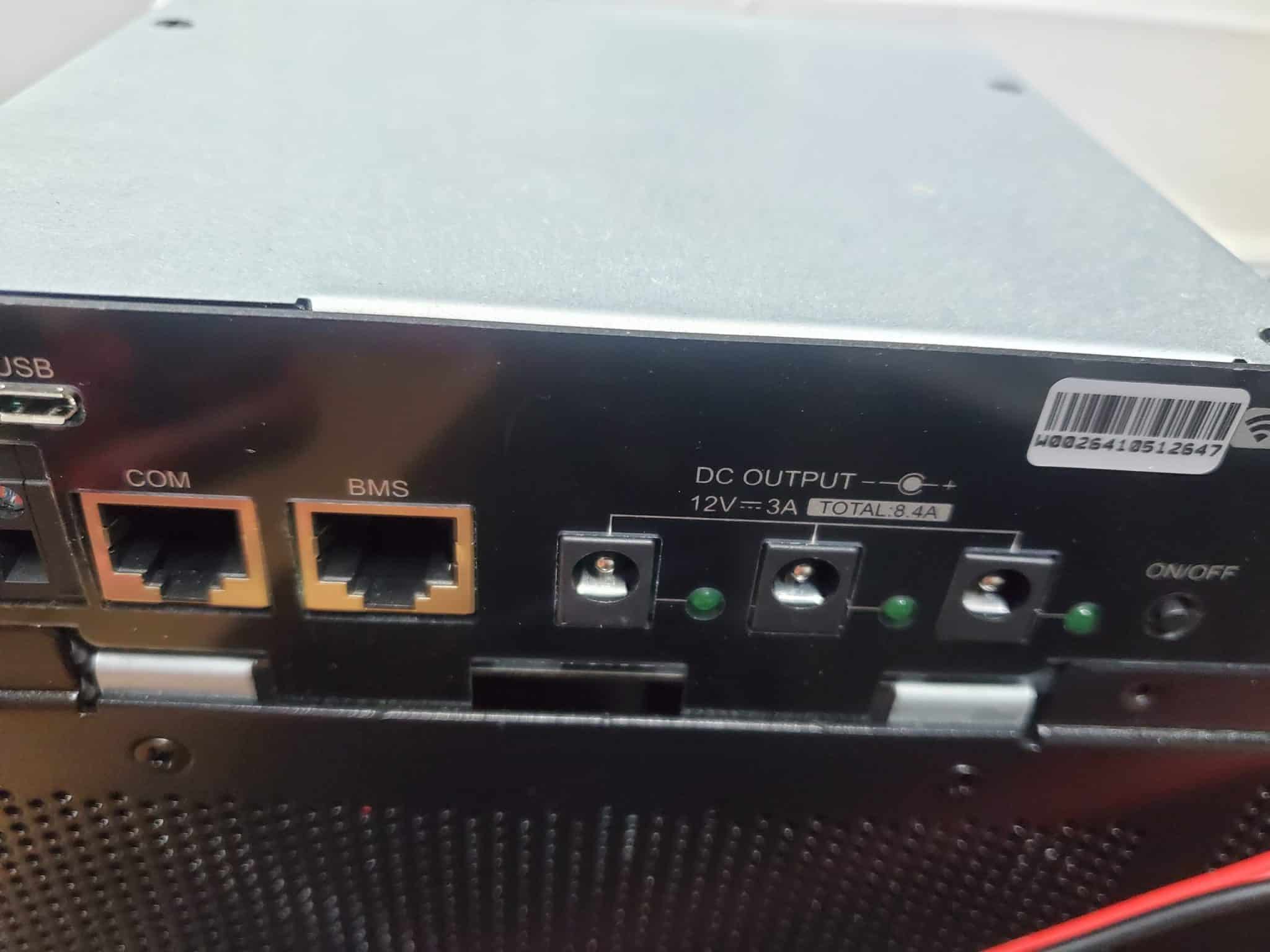

  • Optional DC output for DC fan, LED bulb, router and so on.
  • Parallel operation with 6 units

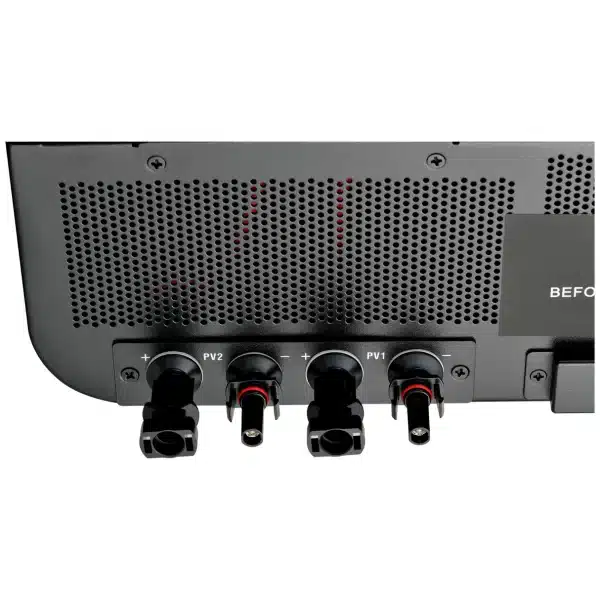

  • 2 MPPT Inputs  – max 4000W each

Additional information

Weight 55 lbs
Dimensions 29 × 23 × 11 in

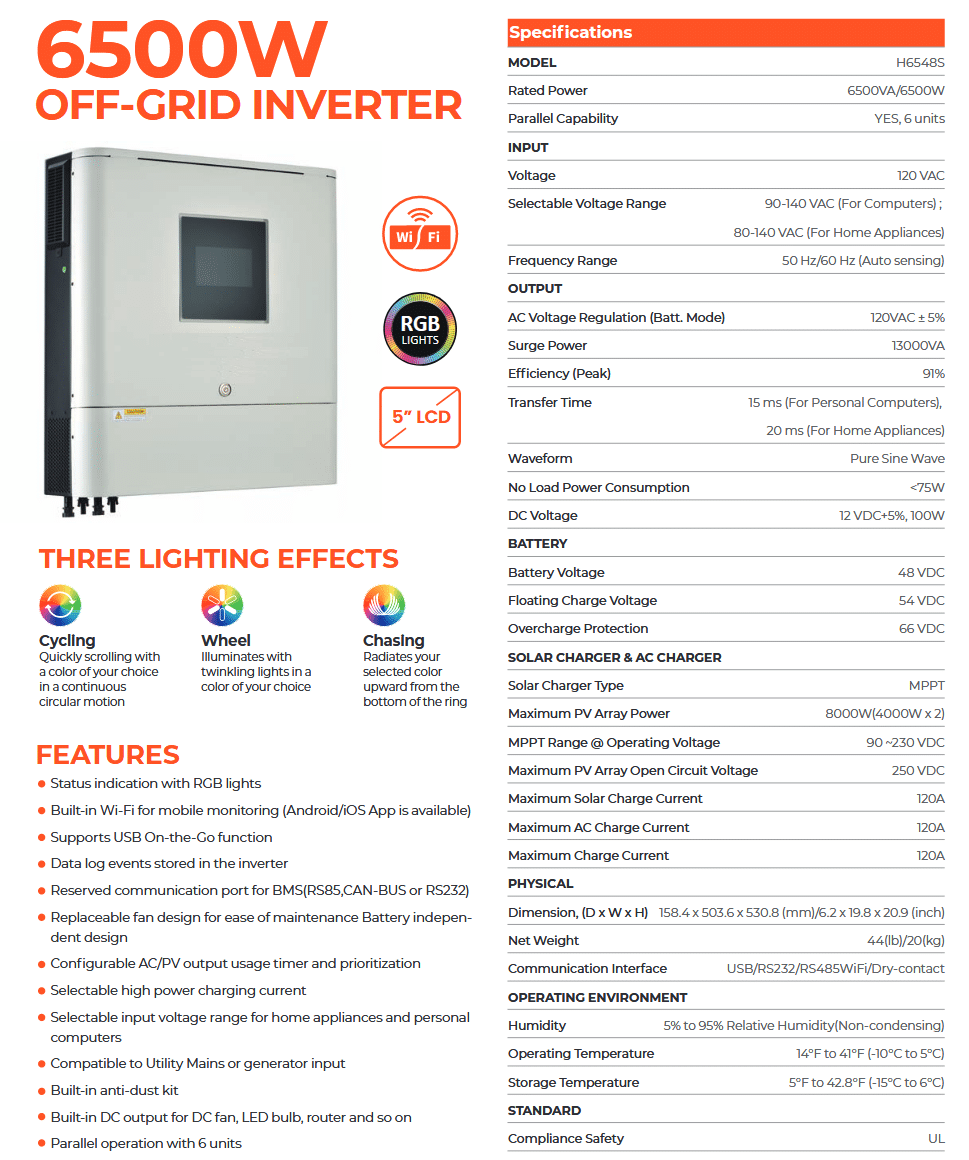

Tech Specs

Specifications:

Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

  • Voltage: 120 VAC
  • Selectable Voltage Range: 90-140 VAC (For Computers)
  • 80-140 VAC (For Home Appliances)
  • Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

  • AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
  • Surge Power: 13000VA
  • Efficiency (Peak): 91%
  • Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
  • Waveform: Pure Sine Wave
  • No Load Power Consumption: <70W
  • Optional DC Voltage: 12 VDC ± 5%, 100W
  • Dual Outputs: Yes

BATTERY

  • Battery Voltage: 48 VDC
  • Floating Charge Voltage: 54 VDC
  • Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 8000W (4000W x 2)
  • MPPT Operating Voltage Range: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120A
  • Maximum AC Charge Current: 120A
  • Maximum Charge Current: 120A

PHYSICAL

  • Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
  • Net Weight: 44.09 lb
  • Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

  • Humidity: 5% to 95% Relative Humidity(Non-condensing)
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -15°C to 60°C

STANDARD

  • Compliance Safety: UL
