Description
( D1 portion)Description , see below for F1 portion
NOTE: at least 4 clamps required per panel
NOTE , this kit contains both the D1 and F1 parts to make a fully functional solar panel mounting system for Shingle and Metal roofs, allowing the solar panel to be mounted directly to the bracket, no other hardware neccessary
Makes installation a breeze
The IR-D1+F1 Multi-Surface Deck Mounted Bracket is extremely fast and versatile for mounting solar modules on metal and asphalt roof surfaces. This bracket can be deck mounted with no need to find joists or rafters, and utilizes IntegraRack’s Super Sealing Technology.
– Compatible With Rails Or Go Rail-less
The IR-D1 is an easier solution for solar module mounting on metal and asphalt roof applications. The upright part of the bracket includes an opening for a 5/16″ T-Bolt and an adjustable slot for a 3/8″ T-Bolt, making it capable of mounting with any rail based system. The IR-D1 panel brackets are used to attach the modules right to this bracket. (included in this kit)
– Super Sealing Technology
This deck mounted bracket is fitted with Hydro-Sealing Mastic Rubber on the bottom of the feet. This thick rubber will expand into the threads of the deck bolts and through the two visual inspection holes when the proper amount of bolt pressure is applied to ensure a 100% infusion seal with the roof surface. The IR-D1 comes standard with four self piercing deck mounting bolts and EPDM sealing washers.
– Works On Most Metal and Asphalt Surfaces
The IR-D1 Brackets “hat shaped” design is specifically suited to fit around the corrugation of a large variety of standard metal roofs while providing necessary strength and clearance for the solar modules.
– Deck Mounted
Designed for deck mounting, so there is no need to find Rafters or Joists for the mounting of this bracket. This provides ample flexibility when installing modules on a roof and, in some cases, allows for the placement of more modules than traditional metal or asphalt roof mounts.
Manufacturer Resources
For additional Product Info, Instructional Videos, Warranty Coverage, Datasheets, Testing & Engineering, please CLICK HERE to view Manufacturer’s Resources for the IR-D1.

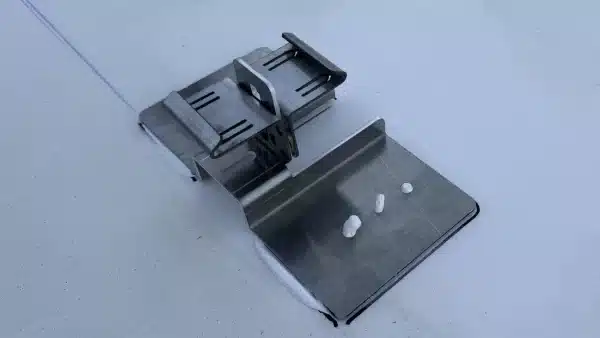

(F1 portion) Rail-Less Solar Module Mounting & Bonding
When clamping solar panels, the stainless steel spring barbs dig into the bottom flange of the solar module to prevent it from sliding and also bond the modules together. For brackets in between rows, you can mount one IR-F1 Bracket on either side of the mounted bracket using the same carriage bolt to hold them all together.
Quick Fold Bend Tabs
Works in tandem with the Bend Tab Clamps incorporated into the top of our brackets. When quickly folded over with a flathead screwdriver, it clamps the solar module frame directly to the IR-F1 Rail-Less Module Flange Clamp Bonding Bracket, bonding it and locking the solar module firmly in place. For mid-row brackets, you can bend each tab in a different direction, and for end modules the tabs can both be bent the same direction for added clamping tension.
Included Hardware
(1) Stainless Steel Carriage Bolt
(1) Serrated Nut
Mounting Requirements
The IR-F1 is compatible with all of our upright brackets with the Quick Fold Bend Tabs. One IR-F1 can be used for end clamping or two can be mounted (one on each side with a single carriage bolt holding them to the upright bracket) for mid clamping.
IntegraRack IR-D1 Super Sealing Multi-Surface Deck Mounted Bracket IR-D1MS4061
- Works On Most All Metal & Asphalt Surfaces
- Deck Mounted – No Rafters or Joists Required
- Super Sealing Technology
- Compatible With Rails
IR-D1 Multiple Surface Super Sealing Deck Mounted Bracket
Our IR-D1 Multiple Surface Deck Mounted Bracket fits on most all metal and asphalt roofs, and is compatible with all rail based systems. This bracket utilizes our patent pending Super Sealing Technology such as Hydro-Forming Mastic Rubber™ on the bottom of the bracket and washers fitted with EPDM Rubber, ensuring a water tight seal for the life of your system. It can be deck mounted anywhere on the roof and doesn’t require any rafters or joists to be mounted. The Hydro Sealing Mastic Rubber fitted to the bottom flows into the threads of the screws and holds its shape to ensure no leaks.
This product conforms to UL 2703 Mechanical and Bonding requirements.
Step 1: Peal Off Adhesive Backing and Firmly Place Bracket
Step 2: Mount Bracket
Step 3: Check Visual Inspection Holes
Step 4: Mount Modules and Fold Bend Tabs
