Description
We finally have a battery that is truly flexible and doesnt need a pesky PC to program BMS protocols
Integrated Emergency Stop – Rapid Shutdown feature, with remote Shutdown Switch
Integrated DC Breaker.
Our battery Racks have integrated E Stop / Rapid Shutdown Feature, as well as Battery Cable and DC Breaker for entire rack, with SB350 Anderson connector

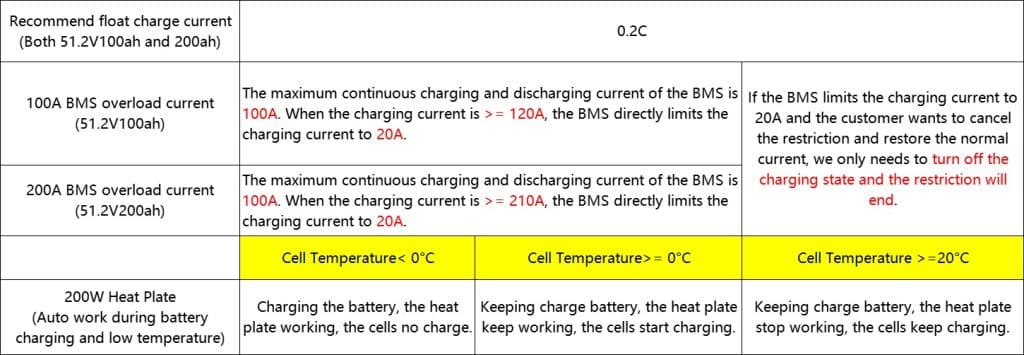

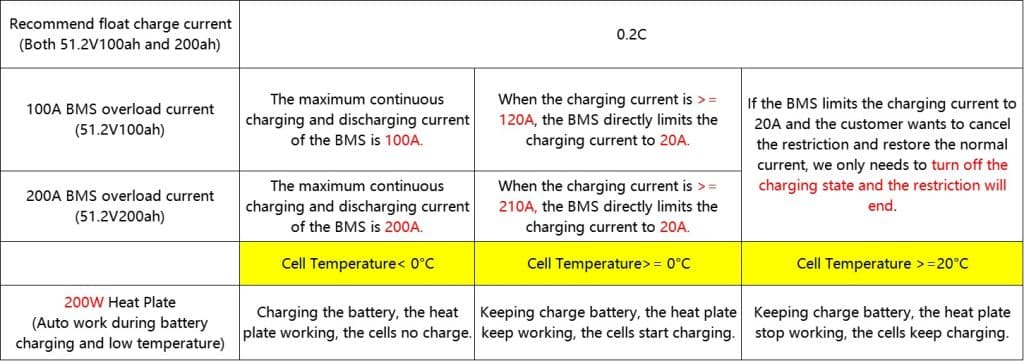

Heated battery, will self heat when battery receives charge AND temp is below 32F
BMS communication Supports 64 Batteries in parallel (6 bit Dip Switches)

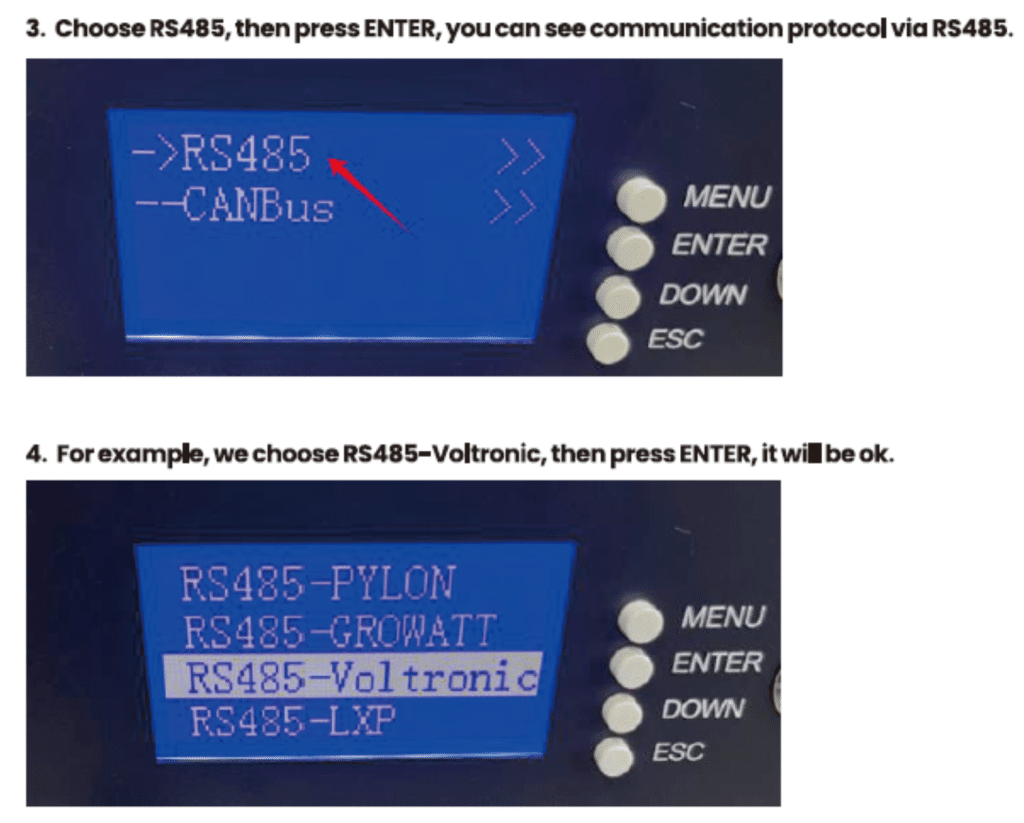

Supported BMS Protocols: (see page 17 of the User manual)
visit mkenergy.us for more photos.
INVERTER BRAND – PROTOCOL
SOROTEC – CANBUS / RS485
VICTRON – CANBUS
SOL-ARK – CANBUS / RS485
DEYE – CANBUS / RS485
GROWATT – CANBUS/ RS485
MUST – CANBUS/ RS485
GOODWE – CANBUS
VOLTRONIC – RS485
MPP SOLAR – RS485
EG4 – RS485
SRNE – RS485
LUXPOWER – CANBUS/RS485

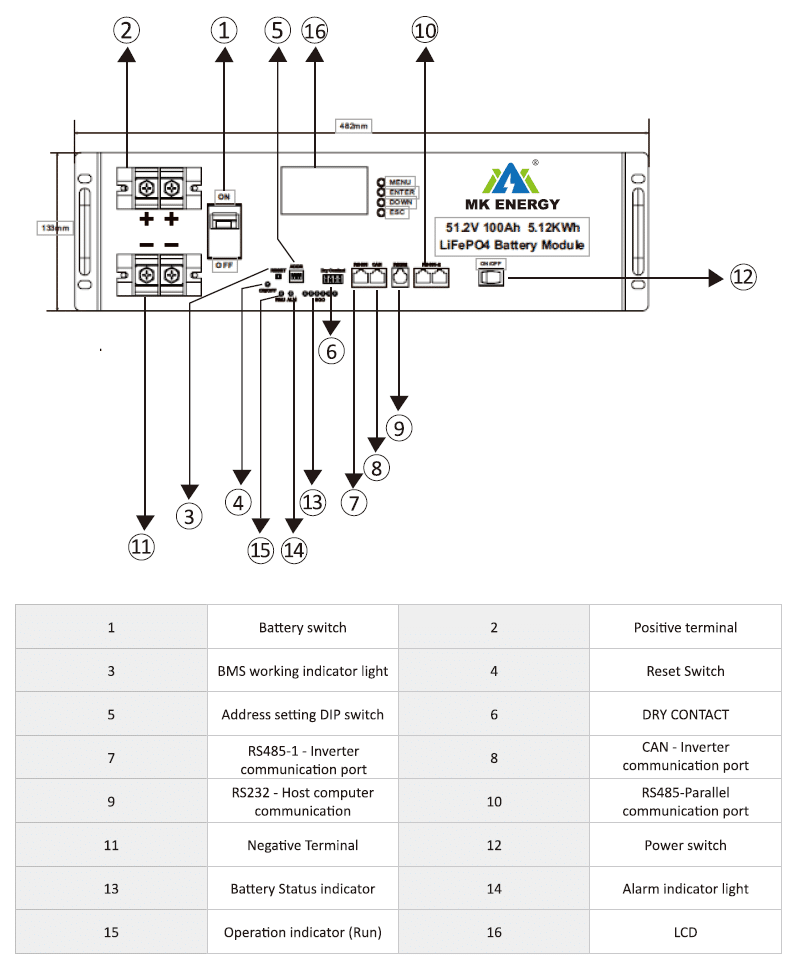

Item 11 Below has now moved to Right Side of battery.
