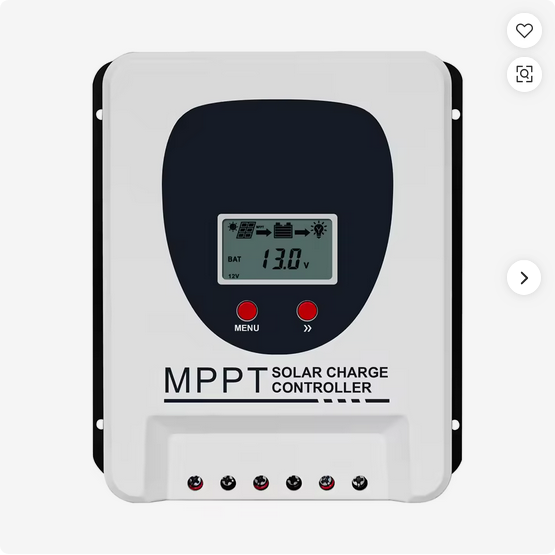

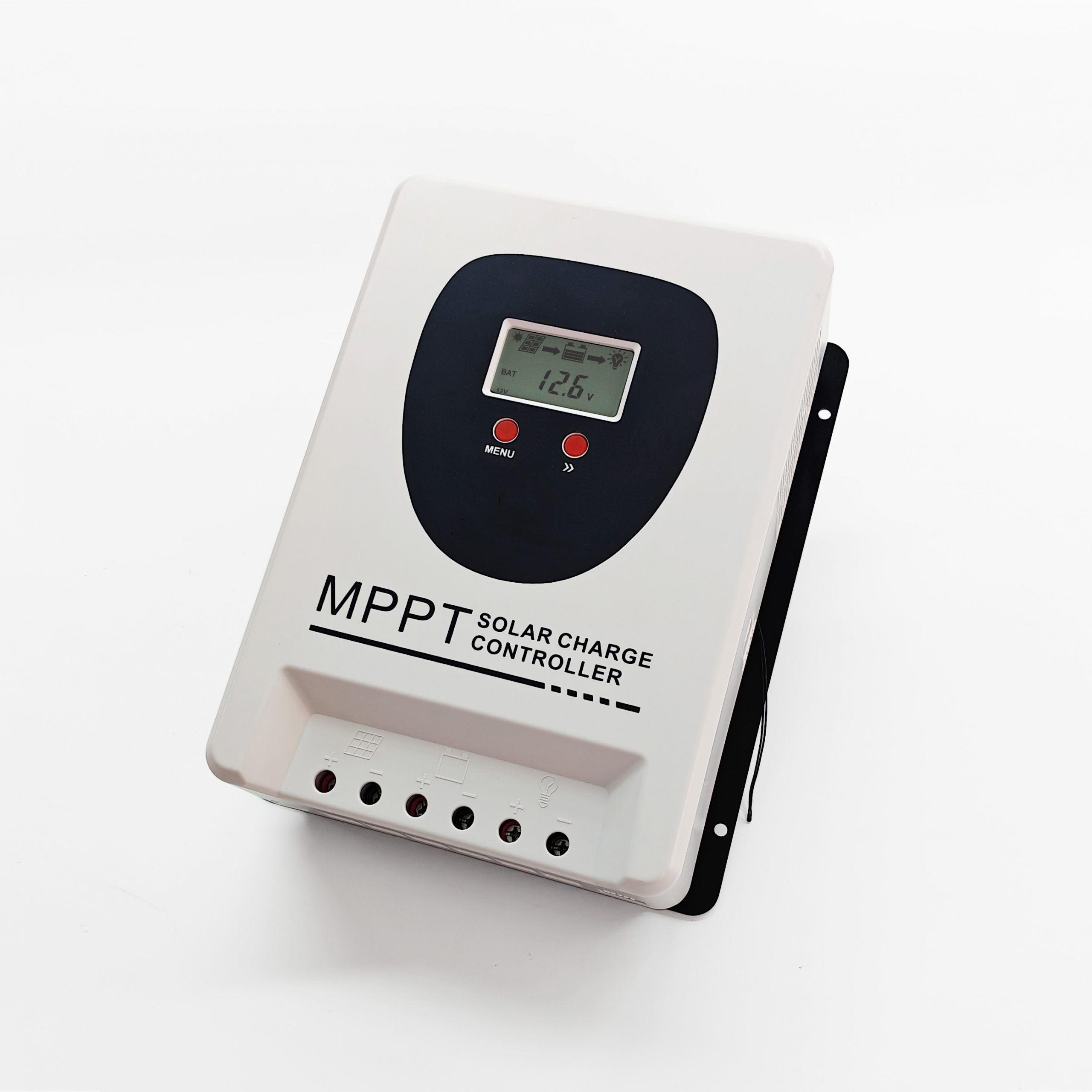

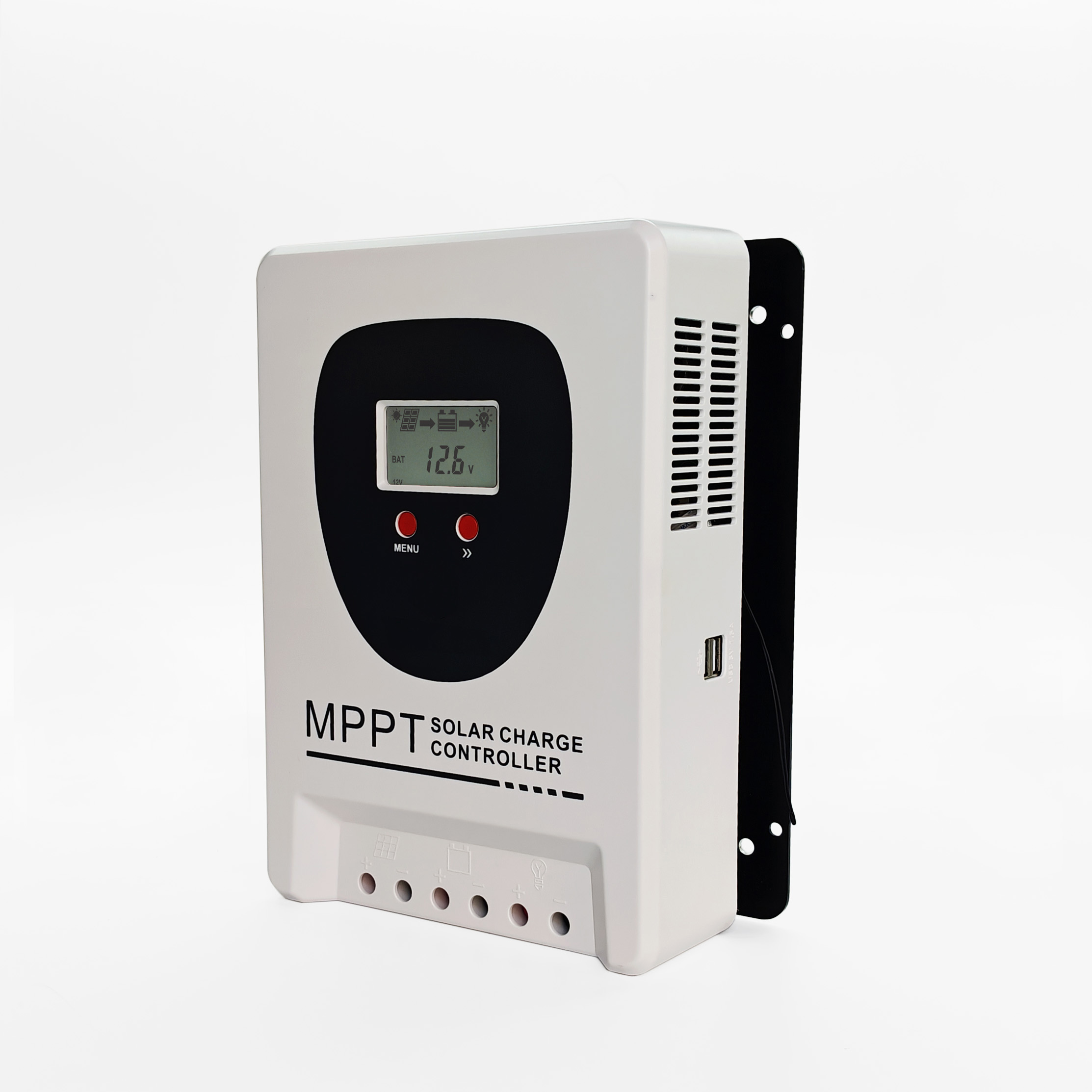

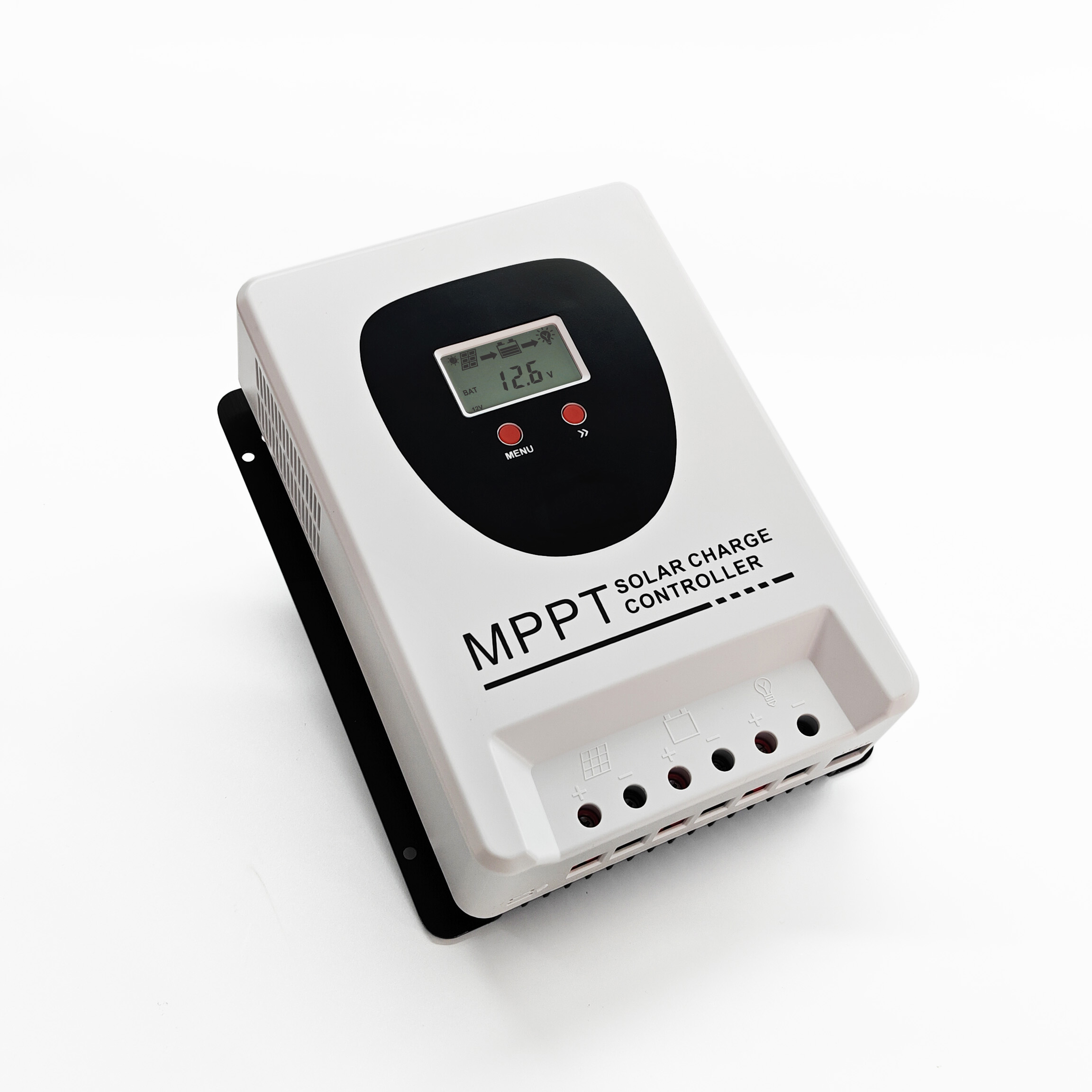

Name: MPPT Solar Charge Controller, 60A, 12V 24V (800W to 1600W) TD2610S (60V max solar input)
SKU: 59327
Availability: InStock

Description

800W max solar for 12V battery

1600W max solar for 24V battery

advanced MPPT (Maximum Power Point Tracking) technology with tracking efficiency up to 99.5%, maximum DC/DC conversion efficiency of 98%, wide range of MPP working voltage.It can keep a stable charging current even on cloudy days, making no waste of any sunlight.
60 Amp Solar Regulator 12V/24VDC system works automatically. Maximum PV voltage 150V, maximum PV input power: 800W for 12V battery system, 1600W for 24V battery system, and can draw maximum of 60A output current to battery bank，Designed with a user mode to manually customize battery parameters to solve the common problem of multi-cell voltage matching.

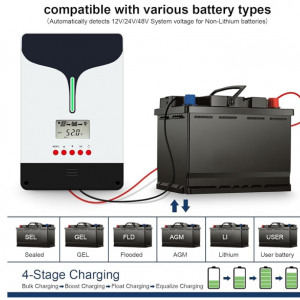

Compatible with lead-acid and lithium batteries, userdefine; preset charging parameters for sealed batteries, gel batteries, submerged batteries, and lithium batteries (LFPs), and charging parameters for other batteries can be customized according to your needs. Especially design user mode to custom Lithium Battery parameter manually to solve the voltage matching common issue of lithium battery.
Multiple protections to prevent those circuit issues. Comprehensive charge protection, short circuit protection, over current protection, reverse polarity protection; detailed LCD display and 2 buttons make this solar controller very easy to use.

Product Type: MPPT solar controller
Rated charge current: 10A 20A 30A 40A 50A 60A
System Voltage: 12V/24V auto
Max. PV open circuit voltage：60V/100V
Communication：External WiFi/Bluetooth(optional)
Battery: Support lithium battery and multiple battery type
Start from PV : Support

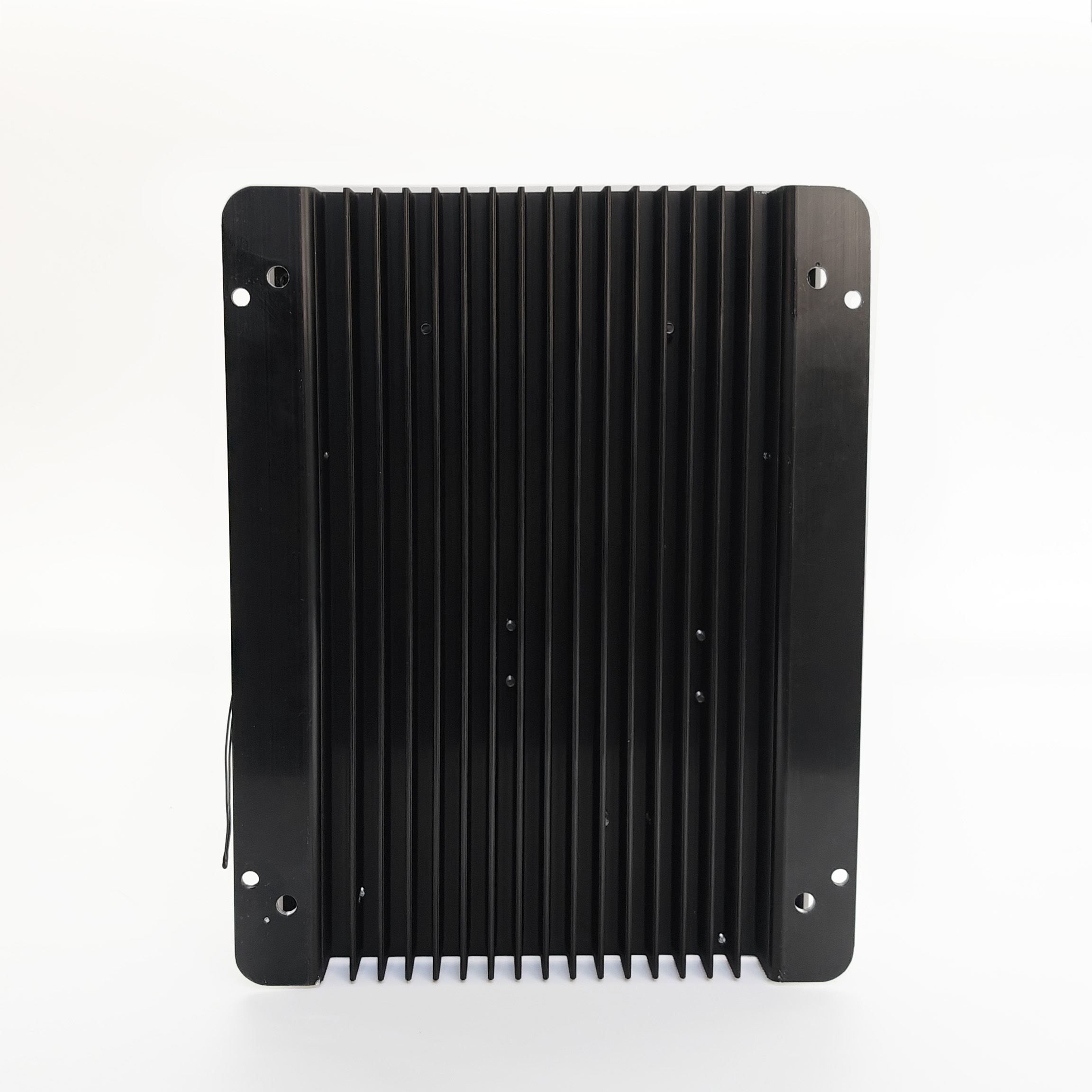

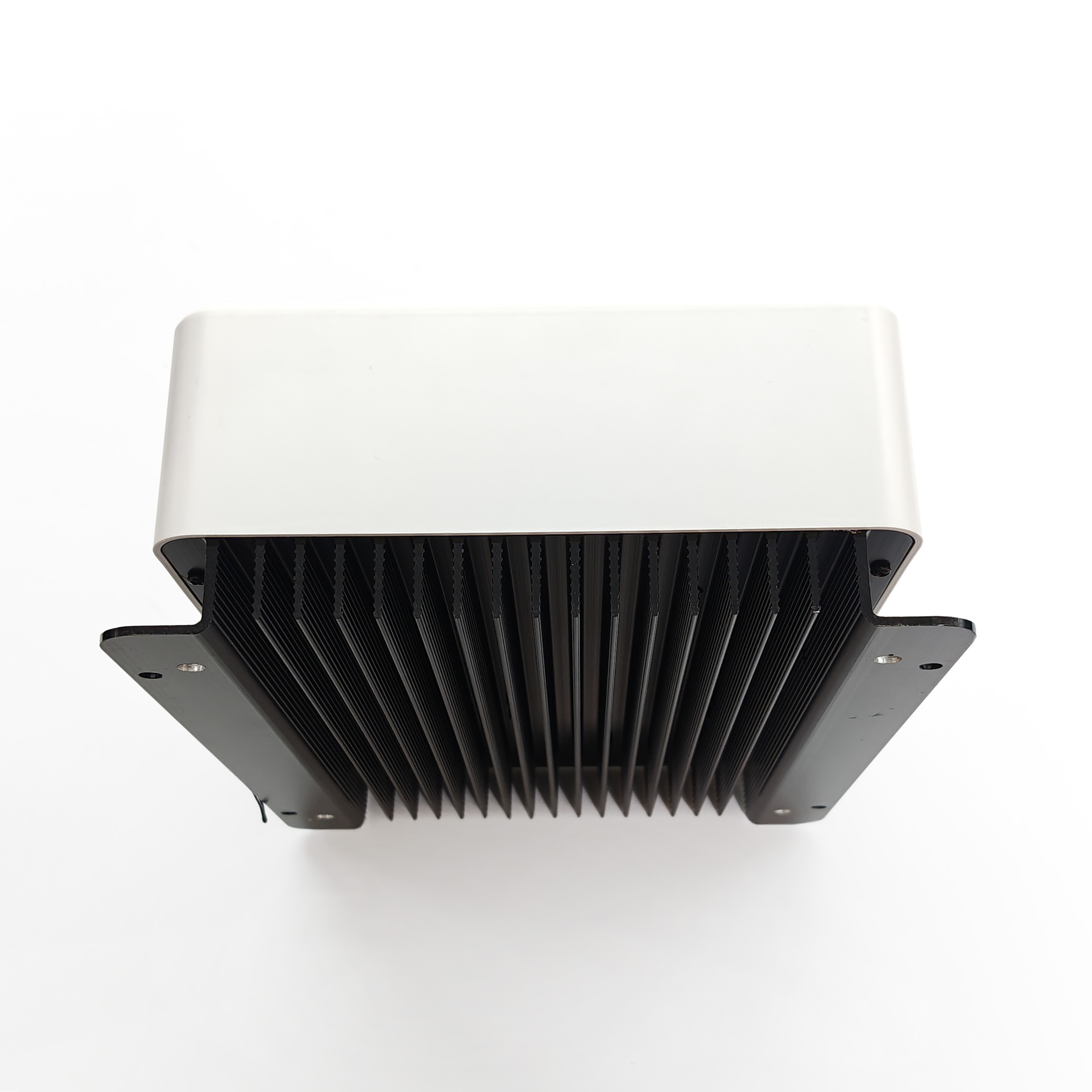

Cooling Mode:Air Cooling

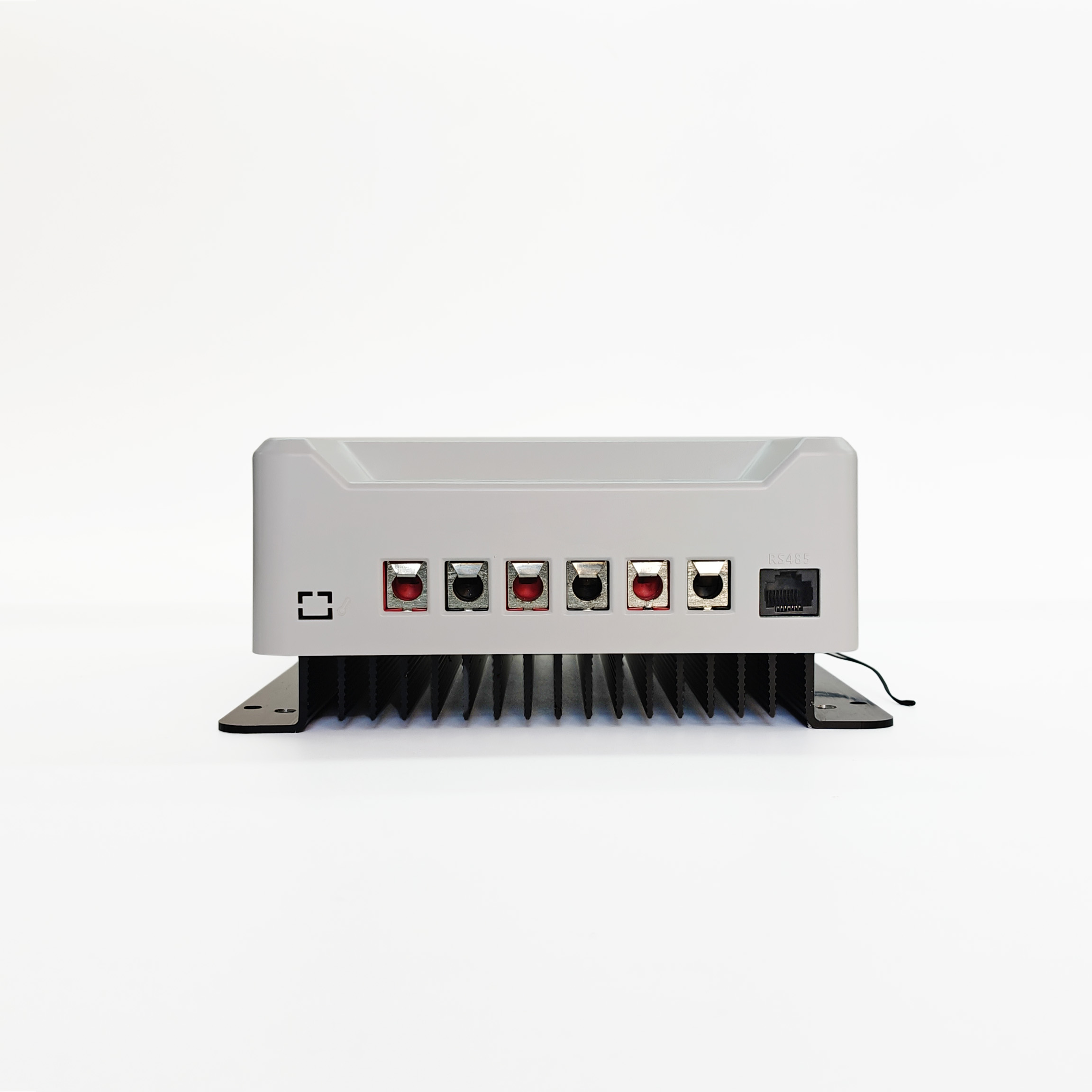

Terminals: Customized large Terminals(Red/Black)
16 Safety Protections:High-Temperature Charging Power Derating Protection、Real-time Energy Statistics Function、Power Limited Protection……

Additional information

Weight	5 lbs
Dimensions	12 × 10 × 6 in
