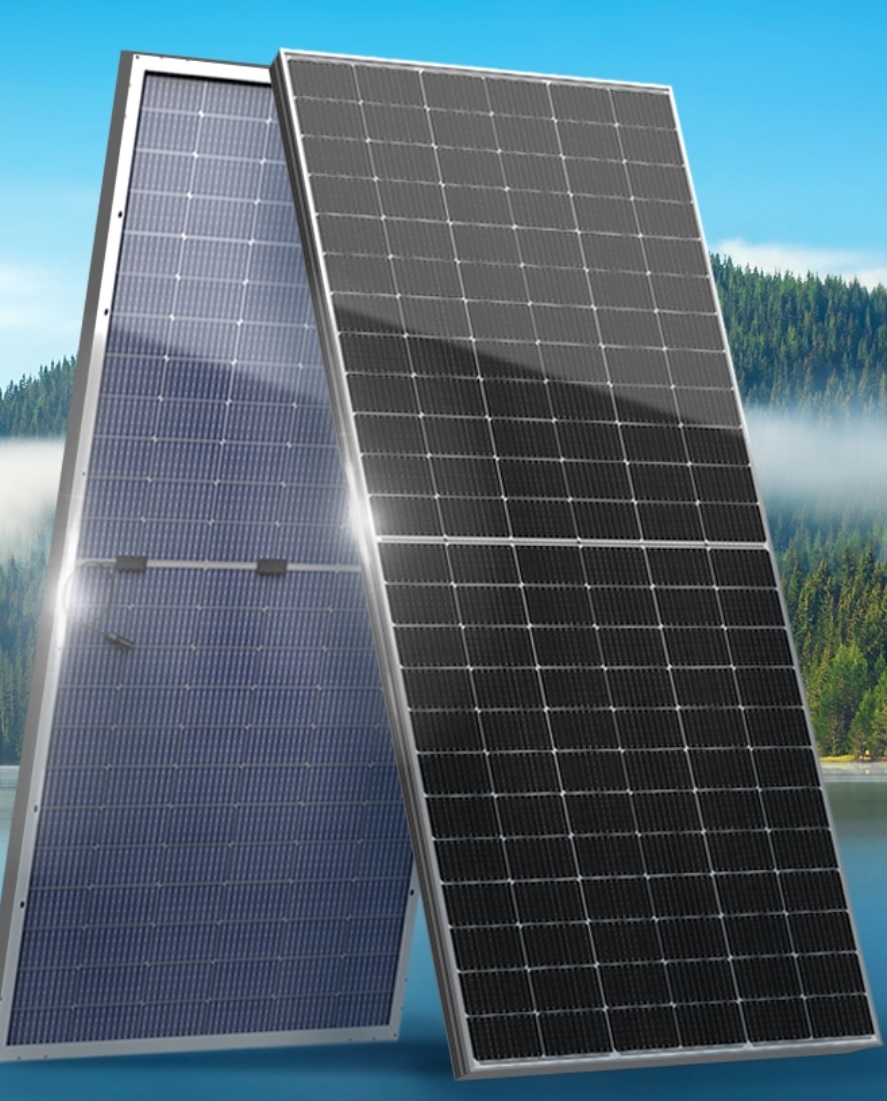

Special Offer -SEG 630W Solar Panel Yukon N Series Half Cell N-Type Bifacial Module per panel – Min order qty= 10 pcs

$190.00

Dimensions:

2465 x 1134 x 30 mm  (97 x 44.64 x 1.18 inch)

74 lbs

Watts Front facing:  630W

Watts Back facing, 504W

Voc 57.06

Isc 13.86

Vmp 47.70V

Imp 13.21 A

Category:

Description

Key Features:

15 yr Guarantee on product material Years and workmanship

30 yr Linear power output warranty

USA based liability insurance (Based in Houston TX)

High Module conversion efficiency

Super Multi Busbar Technology

Superior Load Cap

Long Lifespan

Low temperature coefficient

Founded in 2016, SEG is a leading vertically integrated PV manufacturer headquartered in Houston, Texas, U.S., and is dedicated to delivering reliable and cost-effective solar modules to the utility, commercial and residential markets. By the end of 2023, SEG has shipped over 5 GW of solar modules worldwide.
The company is expected to exceed a production capacity of 5.5 GW by the end of 2024.



Product Certification
PID
Salt Mist
Ammonia Resistance
Dust and Sand
Hailstone
IEC62804
IEC61701
IEC62716
IEC60068
Fire Type (UL61730): Type 29
ISO14001:2015; ISO9001:2015; ISO45001:2018



Note, these are full warranty B Grade panels  (some cells have slight chips etc,  the only time you’ll ever see that is when you are installing them) see pics for some examples

SEG 630-1.jpg






Additional information

Weight 78 lbs
Dimensions 99 × 45 × 2 in

Spec Sheet

https://watts247.com/manuals/solarpanels/SEG/SEG625640BTZBG182EN%20(1)%201.pdf
