UL Listed Kit 16kW Output with 21kW Solar Input, Grid Interactive, 20kW Solar, and 61kWh battery
UL Listed Kit 16kW Output with 21kW Solar Input, Grid Interactive, 20kW Solar, and 61kWh battery - Image 2

UL Listed Kit 16kW Output with 21kW Solar Input, Grid Interactive, 20kW Solar, and 61kWh battery

Original price was: $33,500.00.Current price is: $29,933.00.

The EG4 FlexBOSS21 all-in-one hybrid inverter is a performance powerhouse. It is an ideal inverter for do-it-yourself installers and meets the demands of every stationary power application. Revolutionary features are unlocked when paired with an EG4 GridBOSS.

Specifications:

  • Continuous output power: 12kW (increases to 16kW with solar input)
  • Three MPPT inputs, up to 600Vdc max
  • Complete rapid shut down & RSD transmitter
  • AUX terminals for automatic gen start
  • <65W zero load consumption
  • 250A battery charger
  • Built in 90A transfer switch
  • Enclosure rating: NEMA 4X
  • Dimensions (LxWxH): 11.2×22.3×30.4 in
  • Weight: 121lbs

Gridboss:

Note that The EG4 GridBOSS is designed only for EG4 Hybrid inverters and is not compatible with the 6000XP or 12000XP.

  • Isolate power from the grid
  • Fully compatible with FlexBOSS inverters for a complete ESS
  • Smart Loads feature Load Shedding or Power Shedding
  • Four smart ports (60A/60A/80A/125A)
  • Generator input (two-wire) up to 125A
  • NEMA 3R
  • Weight: 55lbs
  • Dimensions(LxWxH): 7 x 19.7 x 31.5 in



Category:

Description

For the customer who just wants to get off grid, charge your EV at night, run the entire house, and find electrical freedom!

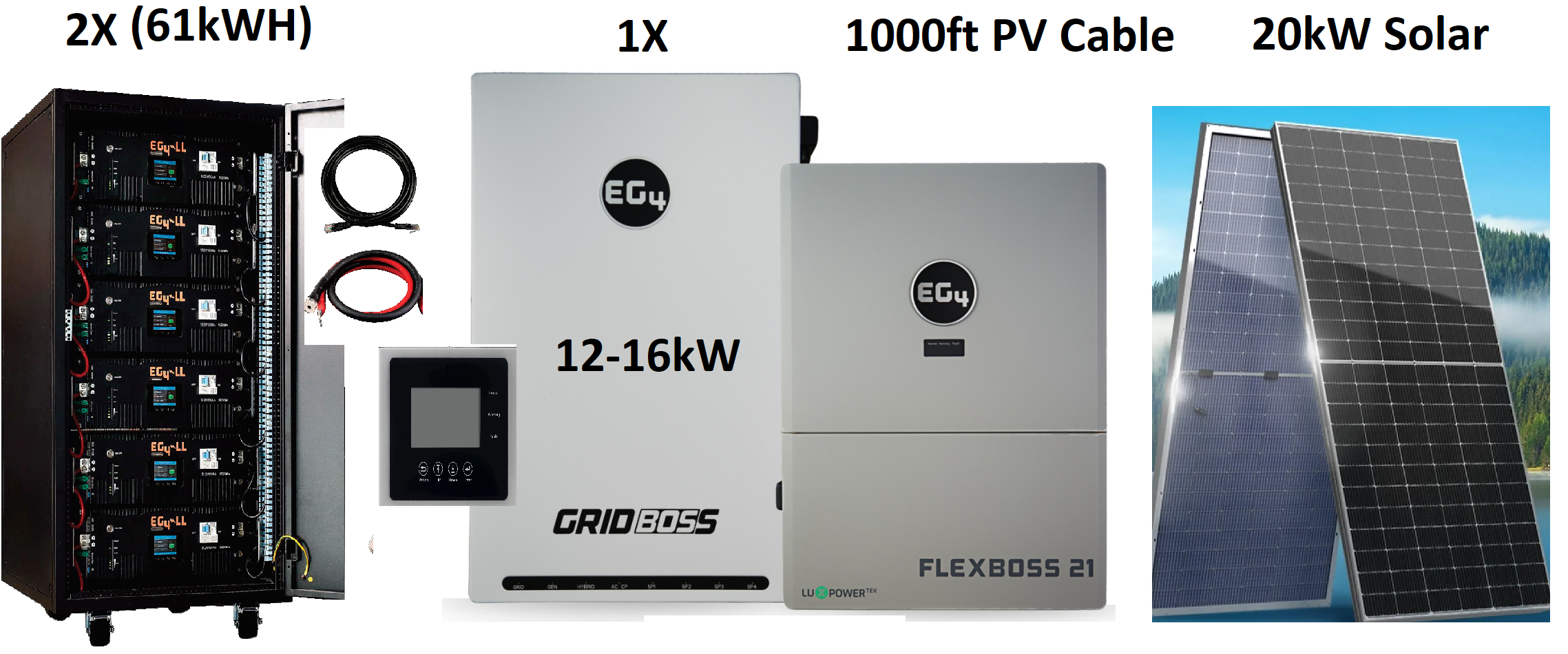

Kit contains:

Flexboss21,  12kW to 16kW (with solar) Split Phase 120V/240V output with 21kW of PV input capacity

Flexboss External LCD Display kit

GridBOSS Microgrid Interconnect Device (MID)

20kW of solar panels,  you choose between 630W, 580W or 550W, 450W or 410W   20000/panel wattage = number of panels shipped (let us know in the checkout text)

61kWh Battery, inlcudes  12 x EG4 LL-S battery  with 2 x 6 Slot battery Racks.

Includes 1000 ft Red and Black 10 AWG Solar wire,  20 pairs of MC4 plugs

20 ft Red and 20 Ft Black 2/0 Battery Cable, and 10 pairs of 2/0 Lugs



Additional information

Weight 6000 lbs
Dimensions 92 × 48 × 48 in
