Description

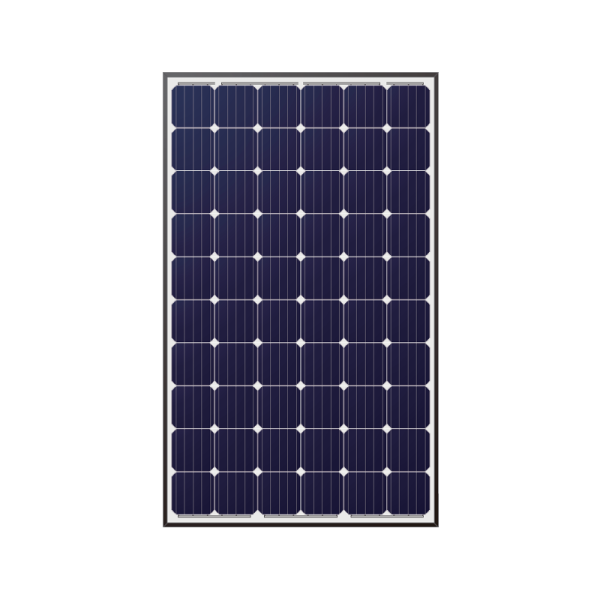

Hanwha Q.Plus-L-G4.2 335 > Q-Cells 335 Watt Poly Solar Panel

QCells, 335W PV Module, H4, PV Wire, 35mm Clear Frame, 72 Cell Poly, 15A Fuse, 1500VDC, Q.PLUS L-G4.2 335

The Q.ANTUM solar module Q.PLUS L-G4.2 335 with power classes up to 345 W is the strongest module of its type on the market globally. Powered by 72 Q CELLS solar cells, Q.PLUS L-G4.2 was specially designed for large solar power plants to reduce BOS costs. Only Q CELLS offers German engineering quality with our unique triple Yield Security.

Model	Q.Plus-L-G4.2 – 335 W
Series	Q.Plus-L-G4.2
Manufacturer	Hanwha

Mechanical

Type	Polycrystalline
Dimensions	78.50″ x 39.40″ x 1.38″
Weight	52.90 lbs
Frame	Silver anodized aluminum
Connector	Junction Box

Electrical

Watts (STC)	335 W
Max Power Voltage (VMPP)	37.33 V
Max Power Current (IMPP)	8.97 A
Open Circuit Voltage (VOC)	46.81 V
Short Circuit Current (ISC)	9.54 A
Max System Voltage (UL)	DC 1500 V

Warranty

• 12 Years Product
• 25 Years linear performance

Documentation

Data Sheet	Hanwha Q.Plus-L-G4.2 305-345W
Warranty	Hanwha Solar Panels

>

Features

• Innovative Weather Technology & Enduring High Performance – Higher yield per surface area and lower BOS costs thanks to higher power classes and an efficiency rate of up to 17.4 %. Optimal yields, whatever the weather with excellent low-light and temperature behavior.
• Safe Electronics & Profit Increasing Glass Technology – Long-term yield security with Anti-PID Technology, Hot-Spot-Protect and Traceable Quality Tra.Q. Inclusive 12-year product warranty and 25-year linear performance guarantee.
• Advanced Lightweight Frame & Extended Warranties – High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa). Investment security due to 12-year product warranty and 25-year linear performance warranty.
